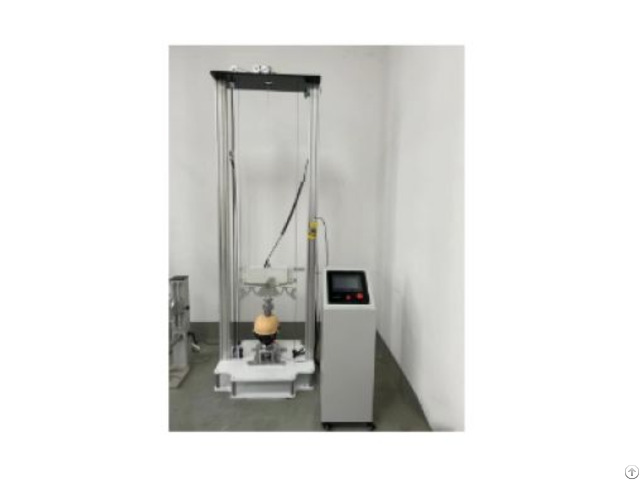

Safety Helmets Impact And Penetration Resistance Tester - China

Standard

GB/T 2811-2019 (China’s national standard for helmet safety and impact resistance) GB/T 2812-2006/XXXX (Testing methods for impact absorption and penetration resistance of helmets) ISO 6220-2 (Road vehicles – Restraint systems for occupants – Test methods for energy absorption) EN 960 (Headforms for protective helmet testing) Product Advantages

Dual-Function Versatility Rapid fixture exchange: Switch between impact and penetration tests in under 10 minutes.

Universal compatibility: Tests industrial, cycling, motorcycle, and climbing helmets.

Ultra-Precision Impact Analysis 5.0kg stainless steel hammer: Hemispherical head (R50±1mm) with 1.000mm drop height.

20.000N force sensor: 5kHz sampling rate captures transient forces (0.1N resolution).

Penetration Resistance Validation 3.0kg penetration hammer: 60°±0.5° conical tip (40mm min.

length, 45–50 HRC).

1.000mm drop height: Simulates sharp object impacts at 18.7 km/h.

Smart Data Acquisition Real-time force curves: Plots acceleration-time histories (1ms time resolution).

Pass/Fail alerts: Automated compliance checks per GB/T 2812-XXXX.

Industrial Durability 4-meter steel frame: Anti-vibration design with powder-coated finish.

IP65 control panel: Withstands dust and splashes in lab environments.

Product Features

Impact Testing Drop Mechanism: Electromagnetic release: Ensures repeatable 1.000±5mm drop height.

Guide rails: Self-lubricating linear bearings for friction-free motion.

Force Sensor: Piezoelectric transducer: 20.000N capacity, 0.1% FS accuracy.

Data logging: 100.000-point memory with FFT analysis.

Penetration Testing Hammer Assembly: Quick-connect tip: Tool-free replacement for 60°/90° cone angles.

Hardness verification: Built-in Rockwell scale checker.

Safety System: Light curtain: Halts tests if objects enter the drop zone.

Energy-absorbing base: Dissipates 99% of impact energy.

Universal Compatibility Headform Options: EN 960 headforms: Sizes S (54cm), M (58cm), L (62cm) with skin-like coating.

Custom headforms: 3D-printed for specialized helmet designs.

Accessories Included

Headform Kit – EN 960 S/M/L sizes with polyurethane skin coating.

Hammer Set – Impact (5.0kg) and penetration (3.0kg) hammers with storage case.

Calibration Tools – NIST-traceable force gauge and Rockwell hardness tester.

Safety Kit – Light curtain, energy-absorbing base mat, and emergency stop button.

Software License – Lifetime access to HelmetImpact Pro (cloud-connected with API for integration with QMS systems).

Installation & Training – On-site setup by certified engineers + 16hrs virtual training for operators.

Technical Parameters

Specification Impact Test Penetration Test

Drop Height 1.000±5mm 1.000±5mm

Hammer Weight 5.0±0.1kg 3.0±0.05kg

Tip Geometry Hemisphere (R50±1mm) Cone (60°±0.5°, 40mm min.

)

Force Sensor 20.000N, 5kHz sampling N/A (mechanical stop)

Data Resolution 0.1N 0.1mm displacement

Frame Height 4.000mm 4.000mm

Power Requirements 220V/110V AC, 50/60Hz, 800W Qinsun Instruments Co., LTD is a professional laboratory testing instrument manufacturer in China, Have been focusing on laboratory instrument R&D more than 30 years and have rich industry experience, Based on international testing standards, We are also the instrument supplier for BV SGS laboratory, We provide one-stop solutions for lab instruments, Free Training and Turn-Key Service, Products exported all over the world, Offer 36 month warranty and are a trustworthy partner.
