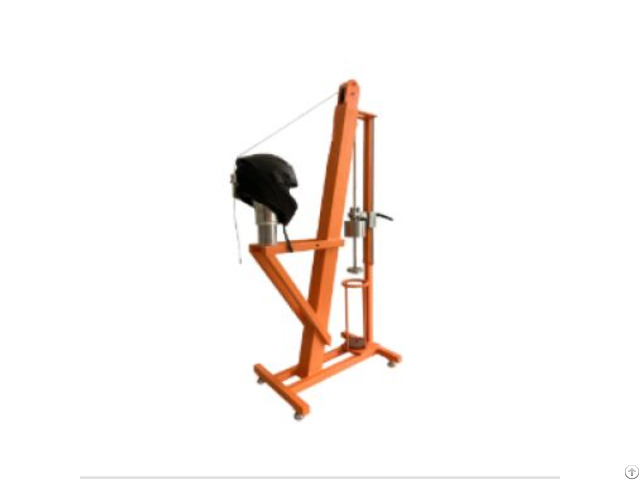

Safety Helmets Wearing Stability Tester - China

Standard

GB 811-2022: Safety Helmets – General Technical Requirements GB 24429-2009: Sports Helmets – Requirements and Test Methods GB/T 2812: Safety Helmets – Test Methods Equivalent Compliance: ISO 6220-2 (Industrial Safety Helmets – Fit Stability) CE Certification (Conformité Européenne) Product Advantages

Multi-Standard Compliance 10kg Impact Weight: Simulates extreme lateral forces per GB 811-2022 - 3kg Initial Load: Validates helmet retention system integrity.

Precision Engineering 0.1kg Load Resolution: Ensures repeatable stability testing for global certifications.

360° Tilt Mechanism: Tests helmet retention under dynamic head movements.

User-Centric Design 7” Touchscreen HMI: Preloaded GB/T 2812 test sequences with real-time force graphs.

Quick-Release Helmet Clamp: Swaps samples in seconds for high-throughput labs.

Safety First Dual Safety Interlocks: Prevents accidental activation during helmet positioning.

Overload Protection: Auto-shutdown at 12kg to protect sensors.

Durability Aircraft-Grade Aluminum Frame: Resists deformation during 10.000+ test cycles.

Corrosion-Resistant Sensors: Stainless steel construction for humid environments.

Product Features

Motorized Tilt Stage: 0–360° adjustable angle with laser-guided positioning.

Modular Head Assembly: Fits adult, child, and custom helmet sizes (50–65 cm circumference).

Dynamic Force Feedback: 0.1N resolution load cell with peak force memory.

Self-Calibrating System: Auto-tare and linearity checks before each test.

Rust-Resistant Frame: 304 stainless steel construction with epoxy coating.

Accessories Included

Testing Kit: 2x Universal Helmet Clamps (adjustable for 50–65 cm heads).

5x Calibration Grade Load Cells (10N–500N).

Software Suite: License key for StabilityTest Pro (Windows/macOS).

1-year free access to cloud-based fit analysis tools.

Calibration & Safety: NIST-traceable force gauge.

2x Safety Glasses (EN 166 rated) + 1x Face Shield.

Maintenance Kit: Spare accelerometers and load cells.

Machine cleaning solution (non-corrosive).

Documentation: Multilingual quick-start guide (printed + digital).

Compliance certificates for GB/ISO standards.

Technical Parameters

Parameter Specification

Impact Weight 10.0kg ±0.1kg (stainless steel)

Initial Load 3.0kg ±0.1kg (adjustable)

Release Method Manual lever with safety interlock

Tilt Range 0–360° (1° resolution)

Force Sensor 0–500N range, 0.1N resolution

Data Acquisition 16-bit resolution, 1.000Hz sampling

Power Supply 220V AC, 50/60Hz (single-phase)

Dimensions 800mm (W) × 600mm (D) × 1.500mm (H)

Weight 150 kg (net)
