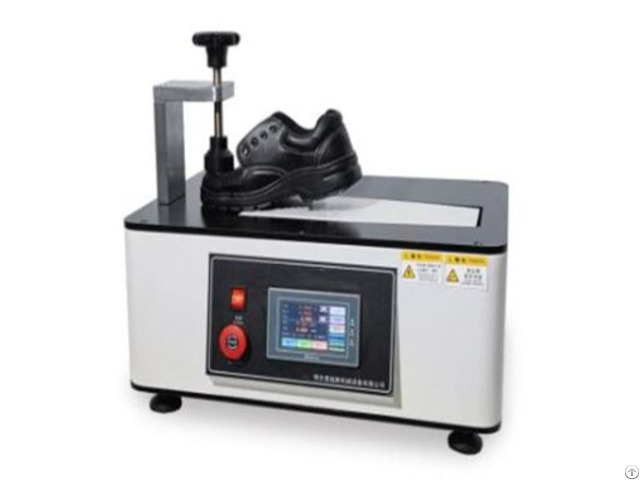

Shoe Bending Angle Testing Machine - China

product introduction:

shoe bending angle testing machine is mainly used for outsole rigidity test, with a solid block the front of the shoe clamped on the hard base, with the speed of (100±10)mm/min to increase the force of 30n, observe the angle of the bending of the outsole, according to its angle to determine whether the product needs to enter the folding resistance test.

reference standard:

gb/t 20991-2007 "test methods for personal protective equipment shoes" 8.4.1 —— 4 qb/t 1002-2015 leather shoes 5.5.4.2 qb/t 2885-2007 "footwear outsole test methods for folding performance" 4.2 bs en iso 17707-2005 product advantages:

measures outsole flexibility/rigidity: provides a quantitative assessment of how easily the outsole bends under a specific load.

standard compliant: designed to meet relevant national and international standards for outsole bending stiffness testing.

preliminary assessment tool: helps determine if an outsole is suitable for more extensive dynamic flexing tests.

quantitative result: provides an objective bending angle measurement at a specified force.

controlled test parameters: allows for precise control of the speed of force application and the applied load.

easy to operate: relatively straightforward test procedure.

product features:

clamping mechanism designed to securely hold the front part of the shoe or a section of the outsole on a hard base.

mechanism to apply a controlled force (likely 30n) at a specific speed (100 ± 10 mm/min) to bend the outsole.

system for measuring the bending angle of the outsole when the specified load is applied.

led digital display to show the measured bending angle.

robust construction suitable for repetitive testing.

technical parameters:

1 - speed: 100±10/mm/min 2 - load: 30kg 3 - display: led digital display 4 - volume: 67x53x65cm 5 - weight: 60kg 6 - voltage: ac 220v
