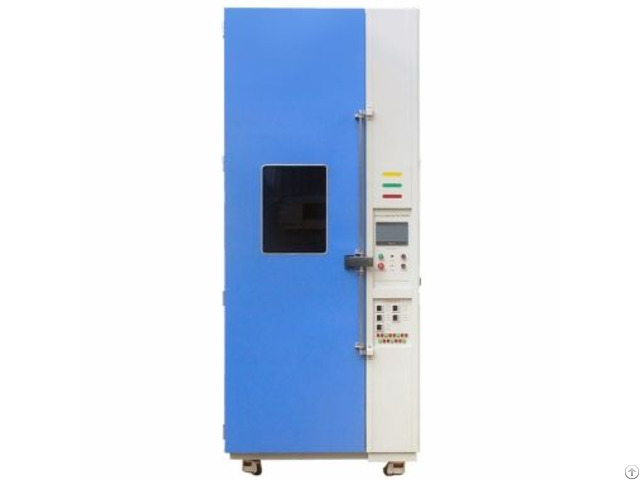

Solar Climatic Test Chamber - China

Features and Benefits

1 - Fully Compliant with IEC 61215 Specifically designed for the UV preconditioning test in PV module qualification.

Ensures your products meet international reliability standards before thermal humidity testing.

2 - Dual-Band UV Simulation with High Accuracy Equipped with 20 UVA and 10 UVB fluorescent lamps, the chamber delivers realistic solar UV exposure across 280–400 nm, with over 90% in UVA—closely matching natural conditions.

3 - Large Test Capacity for Full-Size PV Modules Accommodates up to full-size solar panels on sample holder, supporting efficient batch (≥2 pieces, customized)testing and reducing time per certification cycle.

4 - Precise Environmental and Irradiance Control With programmable control of temperature (ambient to 90°C), black panel temperature (35–80°C), and UV irradiance up to 250 W/m², ensuring accurate and repeatable test conditions.

Specifications

Name Solar Climatic Test Chamber Model UVP-02 Internal Dimension (mm) 1450*745*2500 D*W*H Overall Dimension (mm) 1875*1210*2800 D*W*H Specimen Holder Size(mm) 1400*2400 W*H Specimen Capacity 2 Pieces Irradiation Source Fluorescent UVA lamps (20 pieces) and UVB lamps (10 pieces) Temperature Range Ambient ～ 90 ℃ ±2℃ Black Panel Temperature (BPT) 35 ～ 80 ℃ Bandwidth UVC: (< 0.1%) UVB: (3% to 10% of total UV) UVA: (90% to 97% of total UV) Irradiance Control ●The wavelength of 280 nm - 320 nm：7.5 k Wh/m2 ●The wavelength of 320 nm - 400 nm：15 k Wh/m2 ●Maximum Irradiance in the UV range: < 250 W/m2 Controller Programmable color LCD touch screen controller Exterior Material Steel Plate with protective coating Interior Material SUS304 stainless steel Thermal Insulation Polyurethane foam and insulation cotton Power Supply AC380V 50Hz 3Phase
