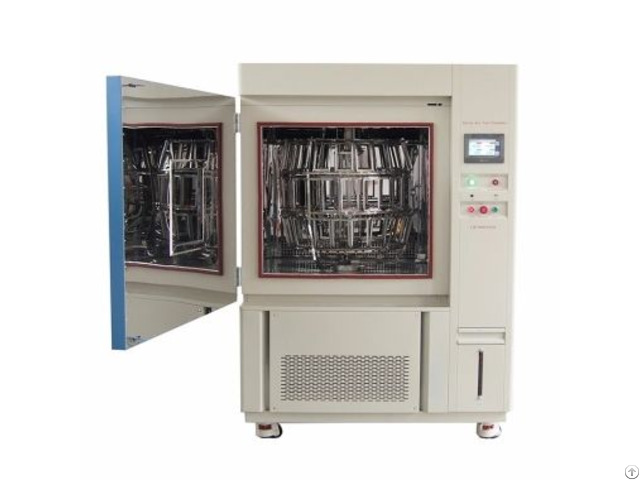

Astm G155 Test Chamber - China

Features and Benefits

1 - ASTM G155 test chamber adopts xenon arc lamp as light source, producing high intensity and stable light, posing good simulation of natural sunlight.

The radiation energy can be set and automatically controlled directly through the controller (340nm, 420nm, 300nm~400nm).

2 - ASTM G155 test chamber can be used to test a variety of materials, including plastics, rubber materials, coatings and coatings, textiles and other fields.

3 - Precise temperature and humidity control in ASTM G155 test chamber : Equipped with heating and cooling systems ranging from ambient to 100 ° C, the temperature of the workroom and blackboard can be directly set and automatically controlled.

Humidity range is 50% to 98%RH.

4 - ASTM G155 test chamber is equipped with a spray system to simulate the effects of dew or rain.

Specifications

Model

STD XL-S-750 STD XL-S-500 Internal Dimension (mm)

950*950*850 mm 500*600*700 mm Overall Dimension (mm)

1400*1400*1950 mm 1000*1140*1920 mm Specimen Holder Size(mm)

95*200 / Specimen Capacity

42pcs / Chamber Type

Rotating Holder Flat shelf Irradiation Source

1 piece of 4500w water-cooled xenon arc lamp Irradiance Range

35~150 W/㎡ Bandwidth Measurement

300nm~400nm (340nm or 420nm) Chamber Temperature Range

Ambient ～ 100 ℃ ±2℃ Black Panel Temperature

BPT 35 ～ 85 ℃ ±2℃ Humidity Range

50% ~ 98% RH Humidity Deviation

± 5% RH Water Spray Cycle

1~9999H59M (Adjustable) Water supply system

Automatic water supply, Water purification system Radiometer

UV Radiometer, Tolerance: ±5% Cooling System

Mechanical compression refrigeration system
