Uv Test Machine - China

Features and Benefits

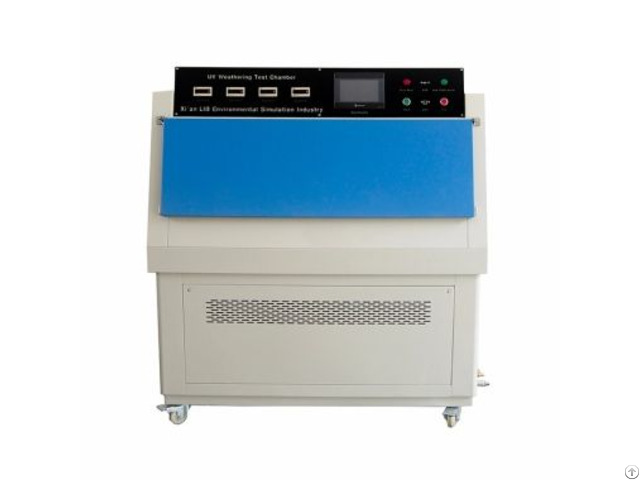

1 - STD UV-SI-260 is widely used in UV aging test, which can realize the comprehensive test of UV, temperature, humidity and water.

2 - The uv aging test equipment is equipped with 8 UV lamps, and the current of the lamps can be displayed, mainly to display the service life of the lamps, which is convenient for users to replace the lamps in time.

UVA-340 - UVB-313 - UVB-351 are all supported.

UV lamp power is 40W.

3 - The specimens of the uv aging machine are easy to install, and 52 pieces of 75*150mm specimens can be put in at one time.

Customized sample holder is also designed for irregular test pieces.

4 - All uv weathering test chambers are CE and RoHS certified.

Specifications

Model STD UV-SI-260 Internal Dimension (mm) 450*1170*500 Overall Dimension (mm) 610*1330*1470 Specimen Holder Size(mm) 75*150 Specimen Capacity 56 Pieces Irradiation Source Fluorescent UV lamps (8) - 40 W Temperature Range Ambient ～ 90 ℃ ±2℃ Black Panel Temperature (BPT) 35 ～ 80 ℃ Humidity Range ≥95% RH Bandwidth 290 ~ 400nm Irradiance Control 0.3~20 W/㎡ Water Spray Cycle 1~9999H59M (Adjustable) Distance of Specimen and lamp 50mm Controller Programmable color LCD touch screen controller, Ethernet connection Water Supply System Automatic water supply, Water purification system Safety Device Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection Exterior Material Steel Plate with protective coating Interior Material SUS304 stainless steel Application

UV spectra is a part of sunlight spectra, causing damage to test pieces.

All the specimens needed to be under UV light radiation can be tested in the UV test chamber.

For example, plastics, rubber, coatings and etc.

in automotive industry, aerospace, building materials.

UV testing chambers, as a type of uv accelerated weathering tester, are also widely used in scientific laboratory conducting research on material aging and photochemistry.
