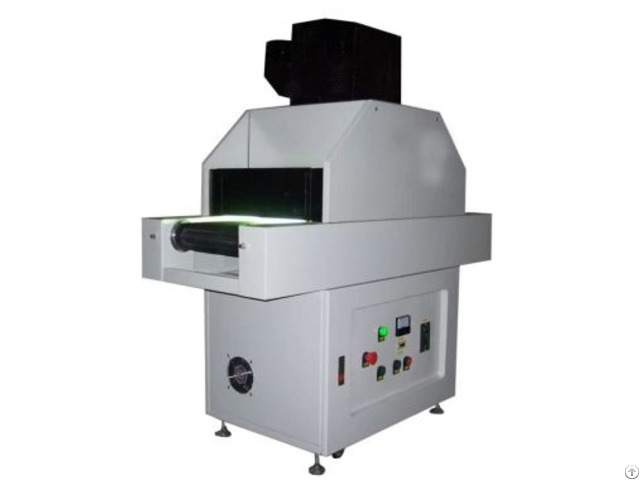

Uv Curing Machine For Screen Printing Paper Sheet Ce Approved - China

Product information UV is the ultraviolet (Ultra-VioletRay) English abbreviation.

Industrial UV wavelength to 200nm to 450nm for its scope of application.

With uv to "UV irradiation can be hardened material" and make it hardening process, called "UVCuring Process ".

UV UV light curing machine widely used Drying function: wood, plywood, furniture, steel, building materials, lenses, leather, etc.

Use UV coating micro-speakers | electro-acoustic industry | speaker speakers, receiver, headphones, earplugs, optoelectronics, microelectronics Adhesive | IC Protection Seal | Integrated Circuit Chip | Glass Plate | Wire Adhesive | Die Seal | Electronic Material Assembly | UV Curing Adhesive | Surface Coating | and Envelope Material | Optical Adhesive | Adhesive | UV light curing 1 - Electric control panel with 1.2mm cold plate folded into a group of welding, after rust treatment, spray computer ash paint.

2 - The outer shell of the hood is made of 1.2mm cold-rolled plate folded into the group, after the anti-rust treatment, spray the computer gray paint.

3 - Shade with UV lamp special aluminum extrusion profile.

4 - Exhaust ventilation.

Fan exports to the outdoor pipeline users.

5 - Lamp normal use to ensure that no less than 1000 hours 6 - Set current display, over-temperature protection and other functions Shape part

Equipment size: total length of 1.5 meters, 0.7 meters wide outside, the bottom of the mesh to the distance of 0.75 meters, 0.5 meters wide inside and outside the import and export part of 0.35 meters long, the material part of the length of 0.35 meters, 0.88 light source, Mouth height of 0.15 meters, before and after with adjustable baffle, can be adjusted to adjust the height of the inlet, the shell is made of 1.2 cold plate bending, the whole surface of the electrostatic high temperature spray; corrosion, easy to clean.

Drive section

Imported speed motor, the speed of 0.5-5 meters adjustable, control speed uniformity, stability, with 120W import speed motor and 50 variable speed box.

Imported black Teflon mesh belt.

Conveyor belt with adjustable speed before and after with adjustable main and passive roller
