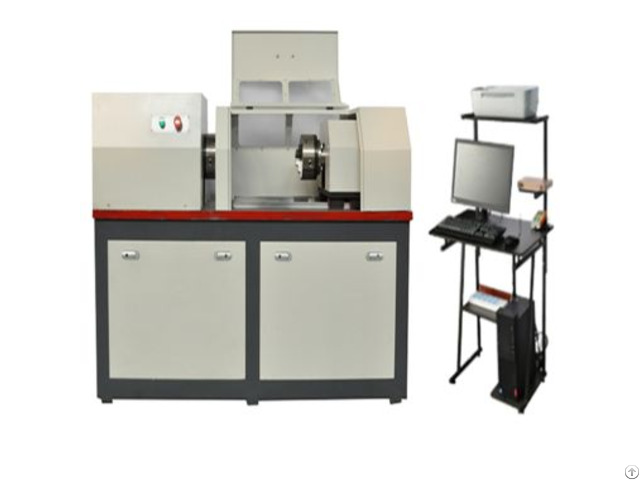

Spring Torsional Fatigue Testing Equipment - China

Test standard:

JB/T 9370 torsion testing machine JJG 269 torsion testing machine verification regulations Functional features: 1) Real-time display of running speed, twist Angle, times 2) The user can set the twist Angle, speed and preset number at will within the specified range, which greatly improves the controllability of the whole machine and meets the testing requirements of different users and different samples 3) The test speed shows two units at the same time: t/m, Hz 4) When the set number of tests is reached, the machine automatically stops, and the buzzer prompts 5) The user can freely set the torsion direction according to the characteristics of the sample 6) Automatic storage function, after the test stops, the number of tests can be automatically saved, and the test can continue next time 7) Using absolute rotary encoder, no cumulative error, control accuracy is greatly improved Main parameters:

1 - Total measuring range (Nm) : 10 - 20 - 50 2 - Adjustable frequency (Hz) : 0-5 3 - Test frequency: according to the actual sample 4 - Adjustable torsion Angle (°) : 300 - according to actual requirements 5 - Counting capacity: 999999999 6 - Test station: 1 7 - Power supply: AC 220V±10% 50Hz 8 - Noise: ≤50dB(A)
