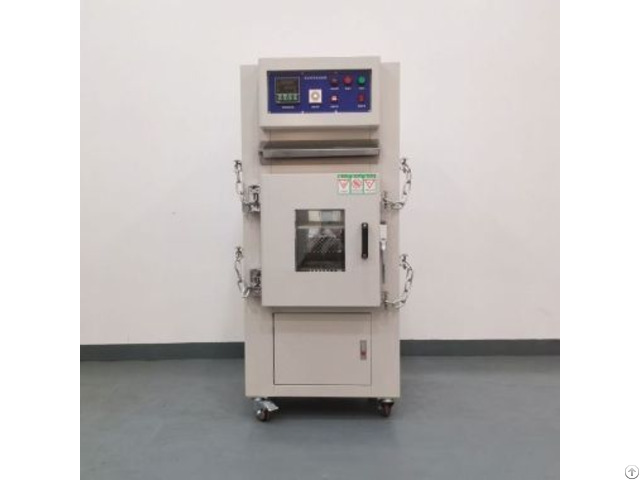

Standard Battery Short Circuit Testing Device - China

Product Introduction

Battery Short Circuit Tester is a device that can be applied to the external short circuit test process of lithium ion battery.

The equipment consists of two parts: short circuit control unit and temperature control explosion-proof box.

While detecting and recording the surface temperature of the battery, it can complete the external short-circuit test of lithium batteries in two different states of room temperature and high temperature, which can satisfy the safety test standards of various batteries at home and abroad.

Standards:

IEC62133; UL 1642: 2012; UN38.3 GB31241-2014 GB/T741-2014

Technical parameter：

Power supply Voltage single-phase 220VAC±10% (110VAC can be customized), frequency 50Hz/60Hz, power 1KW Operating environment Suggested ambient temperature 25±3℃, humidity 30~90RH(%), no vibration and electromagnetic interference Test items External short-circuit test for lithium-ion battery and battery pack Applicable standards GB31241-2014 - UN38.3 - IEC62133-2012 - GB/ T741-2014 - etc.

Short-circuit voltage Max.

100V with 0.2% accuracy Short-circuit current Max.

200A, 0.2% accuracy Oven temperature Max.

150±2℃ Battery temperature measurement Max.

200℃, precision ±1℃ Short-circuit resistance 80±20mΩ, load 4KW Installation size Explosion-proof oven W700mm*D570mm*H935mm Weight Control box W530mm*D400mm*H1150mm
