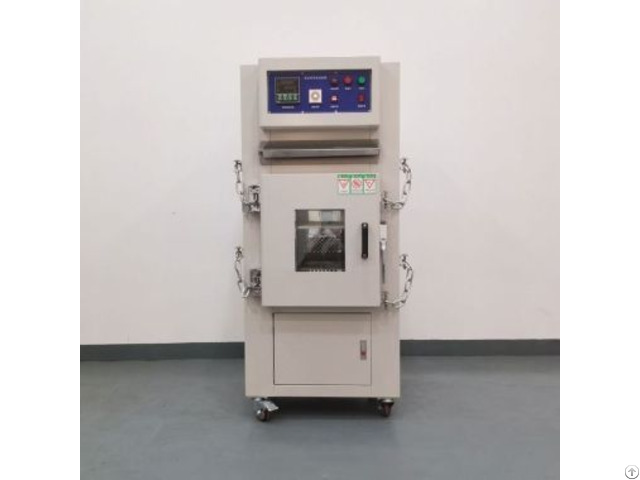

Std Battery Short Circuit Test Chamber - China

Standards:

IEC62133; UL 1642: 2012; UN38.3 GB31241-2014 GB/T741-2014 Functional features

Applicable standards GB31241-2014 - UN38.3 - IEC62133-2012 - GB/T741-2014 - etc.

; The use of imported DC contactors, to ensure the safety and reliability of the short circuit; Hot air explosion-proof oven, enhanced level of sheet metal frame design, impact pressure resistance performance; With cavity heating duct design, temperature uniformity, to ensure that the test environment up to standard; With cavity heating duct design, temperature uniformity, to ensure that the test environment up to standard.

Explosion-proof oven is designed with explosion-proof pressure relief port, explosion-proof laminated glass observation window, and built-in lighting; Patented adapter terminals for batteries with different sizes of short-circuit currents, and battery surface temperature measurement device; High-quality electrical components are selected, and the test current and voltage are shown on the meter, with the function of switching between on-site and remote operation.

Technical parameter：

Power supply Voltage single-phase 220VAC±10% (110VAC can be customized), frequency 50Hz/60Hz, power 1KW Operating environment Suggested ambient temperature 25±3℃, humidity 30~90RH(%), no vibration and electromagnetic interference Test items External short-circuit test for lithium-ion battery and battery pack Applicable standards GB31241-2014 - UN38.3 - IEC62133-2012 - GB/ T741-2014 - etc.

Short-circuit voltage Max.

100V with 0.2% accuracy Short-circuit current Max.

200A, 0.2% accuracy Oven temperature Max.

150±2℃ Battery temperature measurement Max.

200℃, precision ±1℃ Short-circuit resistance 80±20mΩ, load 4KW Installation size Explosion-proof oven W700mm*D570mm*H935mm Weight Control box W530mm*D400mm*H1150mm 电池短路试验机2 - jp g 电池短路试验机4 - jp g
