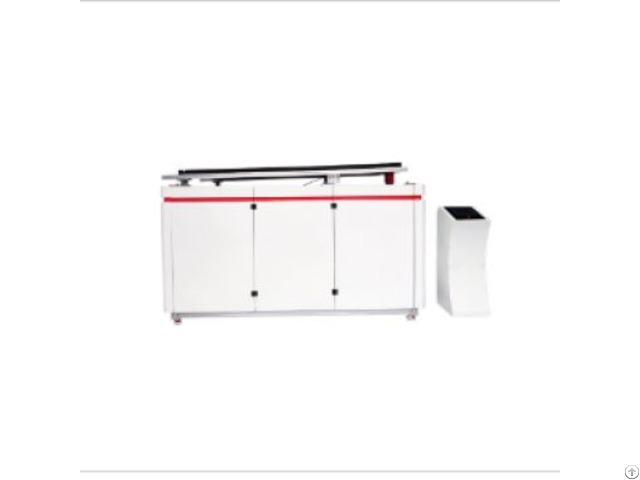

Strength Tester For Lead End Of Photovoltaic Modules - China

Standard

IEC 61215-2: 2016: Terrestrial Photovoltaic (PV) Modules – Test Requirements for Electrical and Mechanical Components CE Certification (Conformité Européenne) Product Advantages

IEC 61215-2 Compliance 2.000mm × 1.000mm Test Area: Accommodates full-size 72-cell modules and custom formats.

≤3% Measurement Accuracy: Ensures pass/fail determination per IEC’s tensile load requirements.

Ultra-Precise Control 0.1N Force Resolution: Captures micro-fractures before catastrophic failure.

Auto-Tare System: Compensates for fixture weight during low-force testing.

Automated Testing Programmable Load Profiles: Simulates 10+ years of thermal cycling in 1.000 cycles.

AI-Powered Failure Detection: Real-time IV curve correlation for connector degradation.

Safety First Emergency Shutoff: Dual redundant safety circuits with load cell override.

Overload Protection: 5 kN max force cutoff for delicate junction boxes.

Modular Design Quick-Change Fixtures: Adapts to MC4 - H4 - and custom PV connectors.

Expandable Test Area: Custom sizes up to 3.0m × 2.0m for large-format modules.

Product Features

Motorized Tensile Stage: 0–500 mm/min adjustable speed with force-displacement graphing.

7” Touchscreen HMI: Preloaded IEC 61215-2 test sequences with auto-hold functions.

Dynamic Force Feedback: 0.1N resolution load cell with peak force memory.

Self-Calibrating System: Auto-linearity checks before each test.

Rust-Resistant Frame: 304 stainless steel construction with epoxy coating.

Accessories Included

Testing Kit: 10x PV Connector Fixtures (MC4/H4 compatible).

5x Calibration Grade Load Cells (10N–5.000N).

Software Suite: License key for TensileTest Pro (Windows/Linux).

1-year free access to cloud-based fatigue analysis tools.

Calibration & Safety: NIST-traceable force gauge.

Insulated gloves (Class 0 - 3 pairs).

Maintenance Kit: Spare drive belts and bearings.

Machine cleaning solution (non-corrosive).

Documentation: Multilingual quick-start guide (printed + digital).

Compliance certificates for IEC/UL/ISO standards.

Technical Parameters

Parameter Specification

Test Area 2.000mm (W) × 1.000mm (D) (customizable)

Force Range 0–5.000N (5 kN capacity)

Force Resolution 0.1N (10 gf)

Speed Accuracy ±1% of setpoint

Power Supply 220V AC, 50/60Hz (single-phase)

Dimensions 2.200mm (W) × 1.200mm (D) × 1.800mm (H)

Weight 250 kg (net)
