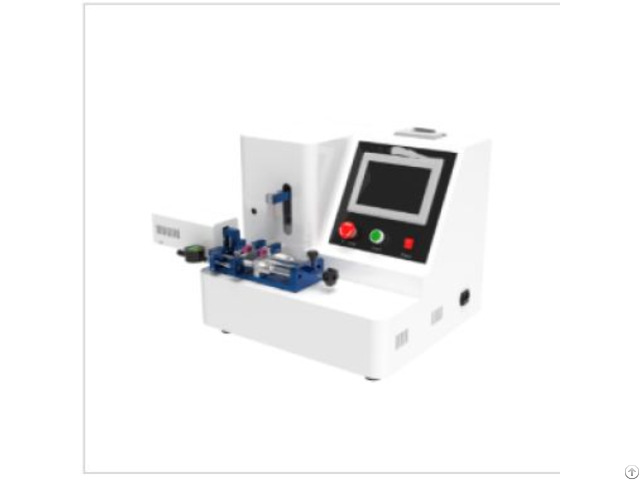

Suture Needle Elasticity And Toughness Tester - China

The Elasticity and Toughness Tester for Suture Needles is a specialized device dedicated to detecting the physical properties of elasticity and toughness of medical suture needles.

Compliance Standards

The testing process and results of the Elasticity and Toughness Tester for Suture Needles need to comply with the following industry standards: - YY/T 0043 Medical Suture Needles - YY/T 0166 Suture Needles with Thread Main Uses

Quality Control: In the production process of medical devices, it is used for quality control to promptly identify and eliminate non - compliant products, ensuring that product quality meets the standard requirements.

Procurement Evaluation: It provides a quality evaluation basis for medical institutions when purchasing and using suture needles, ensuring their safety and effectiveness during surgery.

R & D Support: It assists researchers in the R & D process of suture needles to understand the impact of different materials and processes on the performance of suture needles, and provides data support for product improvement and optimization.

Technical Parameters

Needle Types: 1/2 arc, 3/8 arc, 5/8 arc, straight needle, etc.

Nominal Range: 0.2 - 1.8mm; 12mm ≤ L ≤ 80mm (Any selection within the customizable range).

Displacement Range: 0 - 25mm.

Resolution: 0.01mm; Error no more than ±1%.

Controlled Deformation Rate: 0.01mm/s - 1mm/s.

Sensor: High - precision force value sensor.

Power Supply: AC220V50Hz.

Net Weight: 30kg.
