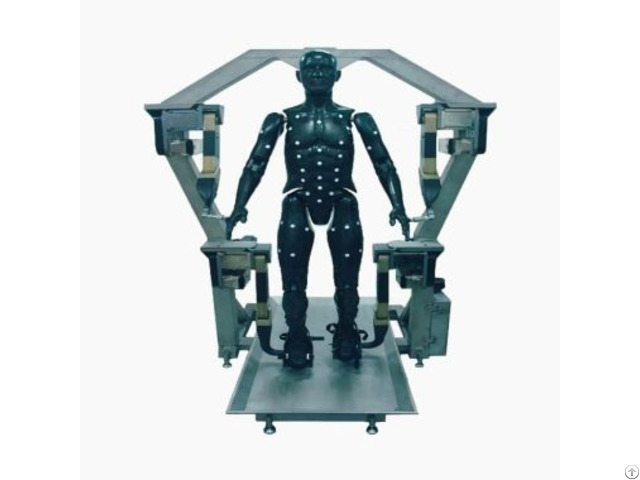

Sweating Thermal Manikin Astm F 2371 - China

Standards:

ASTM F 2371 – Standard Test Method for Measuring the Heat Removal Rate of Personal Cooling Systems Using a Sweating Heated Manikin ASTM F 1720 – Standard Test Method for Measuring Thermal Insulation of Sleeping Bags Using a Heated Manikin ASTM F 2732 – Standard Practice for Determining the Temperature Ratings for Cold Weather Protective Clothing ISO 15831 – Clothing.

Physiological Effects.

Measurement of thermal insulation by means of a thermal manikin EN 13537 – Requirements for Sleeping Bags Product Advantages:

Comprehensive CB Testing: Designed specifically for evaluating the performance of CB protective clothing and equipment under conditions relevant to military operations.

Realistic Simulation: Combines realistic physical articulation and movement simulation with controlled heating and sweating to replicate human physiological responses during exertion.

Evaluates Barrier and Comfort: Allows for assessment of both the protective barrier integrity (via dosimeter ports) and the thermal comfort/physiological burden of the protective gear.

Chemically Resistant: Constructed with materials capable of withstanding exposure to chemical agents and decontamination procedures.

Dynamic Testing: Capable of performing a wide range of dynamic movements to assess garment performance under realistic stress.

Precise Control: Computer-controlled systems for heating, sweating, and motion ensure repeatable and accurate test conditions.

Integrated Data Collection: Includes built-in dosimeter ports for convenient and strategic placement of passive samplers.

High Sweat Rate: Capable of simulating high levels of perspiration during strenuous activity.

Developed for Defense: Commissioned by a defense research organization, reflecting its design for rigorous military applications.

Technical Parameters

Sweating thermal manikins Country of origin Body materials Number of body segments Number of sweat glands Sweating rate (g/m2/h) Movability Application area Other features

“Coppelius” Finland Nonwoven inner layer and microporous outer layer 18 187 0–200 Walk at up to 4 km/h Under different temperature (−50 to +50ºC) and relative humidity (15–95%) Available with different postures and digital data acquisition systems

“TARO” Japan Porous bronze 1 Not applicable As per Eq.

(5.1) Nonwalkable Natural ambient environment of human beings Available with digital data acquisition systems

“SAM” Switzerland Plastic 26 125 0–41 Walk at up to 3 km/h Under different temperature (−30 to +40ºC), relative humidity (20–90%), wind speed (0.2–40 m/s) Available with different postures and digital data acquisition systems

“Walter” Hong Kong Polytetra-fluroethylene Gortex membrane Not applicable Not applicable Depends upon the type of the clothing is tested Walk at up to 2.48 km/h Under different temperature (10–40ºC), relative humidity (30–80%), wind speed (0.3–5 m/s) Available with different postures and digital data acquisition systems

“ADAM” United States Porous metal 126 120 Depends upon the applied physiological thermoregulation model Movable Under transient and nonuniform thermal environments of automobiles, e.g., vehicles, aircrafts Available with different postures of automobile drivers/riders and digital data acquisition systems

“KEM” Japan Porous material that is used in “Coppelius” 17 17 0–1500 Movable Similar to “Coppelius” Available with different postures and digital data acquisition systems

“Newton” United States Carbon-epoxy composite 20 - 26 - or 34 134 Depends upon the experimenters Walk at up to 6 km/h Under different temperature (−20 to +50ºC) and relative humidity (0–100%) Available with different postures, female body, and digital data acquisition systems
