Syringe Sealing Positive Pressure Tester - China

Product introduction

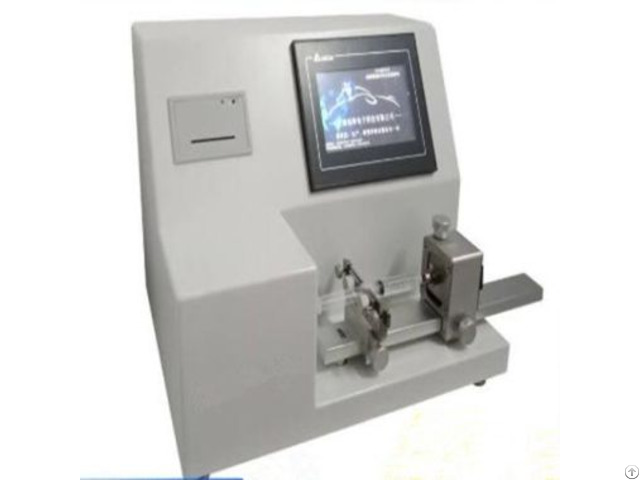

The positive pressure tester for syringe cohesion is composed of intelligent manipulator, force measuring mechanism, distance measuring group mechanism, printer and so on.

Among them, the intelligent driver is composed of CPU, motherboard, LCD display screen, keyboard, power supply and other parts.

Implement GB 15810 standard requirements, positive pressure test principle, check the syringe's tight fitting performance.

Reference standard

GB/T 15810-2001 "Disposable sterile syringe", YY/T 0909-2013 - Test principle

The syringe is sucked into the nominal capacity of water, with the specified axial pressure and lateral force, the effect on the core rod is 30s, and the part of the jacket and the piston shall not have leakage phenomenon.

Under the effect of 88KPa negative pressure, adhere to 60s±5s, the contact part of the jacket and the piston shall not produce air leakage, and the piston and the core rod shall not be separated.

Technical parameters

1 - Lateral force: 0.25 — 3.00N, error is not more than ±0.5% 2 - Axial pressure: 100 — 400kPa, error is not more than ±2% 3 - Nominal capacity: 1 — 200ml, optional 4 - Test time: 0 — 9999 seconds, arbitrary setting 5 - Working temperature: 5 — 40℃ 6 - Relative humidity: (45 — 80) %
