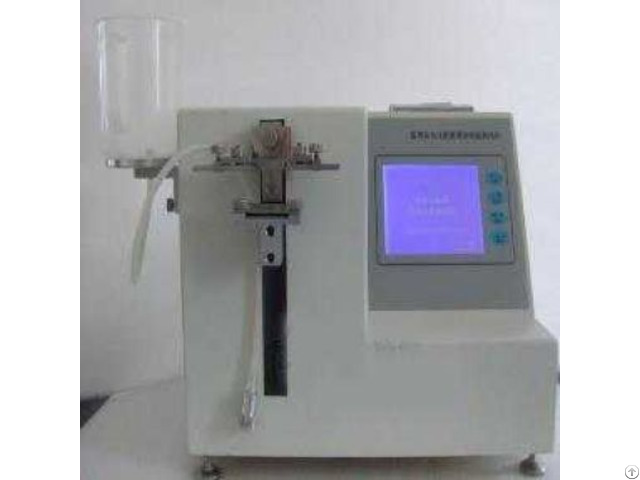

Syringe Slide Performance Tester - China

Introduction:

5.7-inch (120 x 90) single color LCD touch screen, Chinese menu display.

The nominal capacity of the syringe is selected by the keyboard and the starting force and average are shown in real time.

Force, push back the maximum force, push the minimum force and the core bar movement and force record chart, and by the airborne printer to print the test result.

The special tester for sliding performance of syringe is composed of intelligent controller, measuring mechanism, ranging mechanism, printer, etc.

The intelligent controller consists of CPU, motherboard, LCD screen, keyboard and power supply.

The screen is displayed in all Chinese Windows, and the keyboard is used to control the cursor to select, operate, and set, without training, and can be used according to the prompt operation.

standard:

gb15810-2001 Technical parameters: Environment: Working temperature: 5 ~ 40 ℃ Relative humidity : (45 ~ 80) %.

Power supply voltage: 220V plus or minus 22V.

Power grid frequency: 50HZ + + 1HZ.

2 display mode: Using 320 x 240 single color LCD display, all Chinese Windows display.

The keyboard is used to control the menu on the LCD screen and the analog keyboard on the LCD screen.

Power consumption: 200W.

Instrument loading range: 0 ~ 40N, accuracy: + + 0.1 - Experiment speed: 100mm/min + 5mm/min.

Part list of sliding performance tester of syringe:

1 - Main engine 2 - Printing paper 1 roll.

3 - A set of clamps.

Weight one set.

5 - One-year warranty 6 - Operation instructions 7 - The instrument is free to upgrade service according to national standards.

3 - A set of clamps.

Weight one set.

5 - One-year warranty 6 - Operation instructions 7 - The instrument is free to upgrade service according to national standards.
