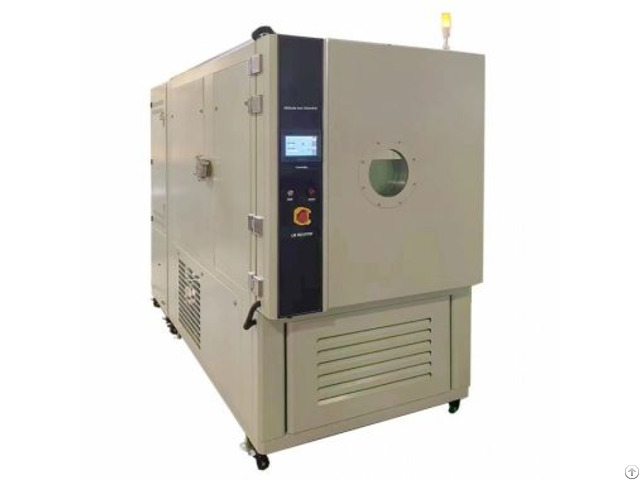

Temperature And Low Air Pressure Test Chamber - China

Features and Benefits

1 - The test chamber combines a wide temperature and humidity range, low pressure range, can complete a variety of complex low pressure tests.

2 - Complete low pressure test can be performed including: preparation; low pressure storage test; low pressure working test; rapid decompression test; explosion decompression test.

3 - The pressure control accuracy can reach ±2Kpa, the low pressure vacuum environment is stable, and the pumping low pressure time is controlled within 30 minutes.

4 - Double-layer or multi-layer structure, A3 shell is durable, the workroom uses SUS304 - which has good corrosion resistance and thermal insulation performance.

Specifications

Model STD A-1000 Internal dimensions D 1500 W 1000 H 970 mm External dimensions D 2050 W 1300 H 2200 mm Temperature range -20℃ ～ +150 ℃ -40℃ ～ +150 ℃ -60℃ ～ +150 ℃ -120℃ ～ +150 ℃ Humidity range 20% ~ 95% (more than 50Kpa can be controlled) Temperature fluctuation ≤ ±0.5℃ Temperature deviation ≤ ±2.0℃ Temperature uniformity ≤ 2.0℃ (under normal pressure and no load) Heating rate 3℃/min Cooling speed 2℃/min Pressure range Atmospheric pressure to 0.5kPa Pressure deviation ± 2Kpa Depressurization time Atmospheric pressure to 0.5k ≤30min Pressure enclosure Manganese steel, surface spray treatment Other outer wall materials Double-sided galvanized steel plate, surface spray treatment Inner wall material SUS304 stainless steel plate Vacuum system Vacuum pump, air pumping regulating valve, inflation regulating valve
