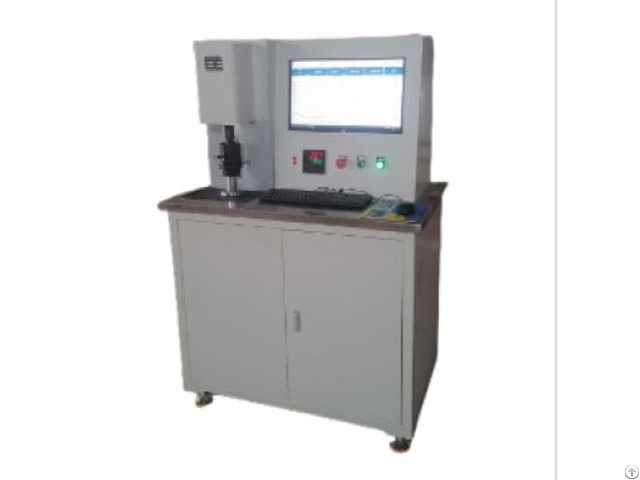

Thrust Washer Friction Testing Machine - China

Applicable standards

When the end face rotary friction and wear testing machine is tested, it is usually necessary to follow certain standards and specifications.

Here are some common applicable standards: GB/T 12583-98: This standard specifies the test method of end-face rotary friction and wear testing machine, including the preparation of samples, the selection of test conditions, the recording and processing of test results, etc.

ASTM D3702-94(2009)： This is a standard developed by the American Society for Materials and Testing (ASTM) for the evaluation of thrust ring friction and wear performance test method.

Although the standard is mainly aimed at thrust rings, the test methods and principles in it also have a certain reference value for the end face rotation friction and wear test.

Other industry or enterprise standards: In addition to the general standards mentioned above, different industries or enterprises may have developed specific test standards that may have specific requirements for specific material types, test conditions, or treatment of test results.

When conducting the test, it should be ensured that the selected standard is consistent with the test purpose and requirements, and the test methods and steps specified in the standard are strictly operated.

At the same time, it is also necessary to pay attention to the calibration and maintenance of the testing machine to ensure the accuracy and reliability of the test results.

Main uses

The end-face rotary friction and wear testing machine is mainly used to evaluate the wear resistance and tribological behavior of materials under rotating friction conditions.

By simulating the actual working conditions of the material in the process of rotating friction, the testing machine can measure key parameters such as friction coefficient, wear amount and wear rate of the material, and then evaluate the wear resistance of the material quantitatively.

This is of great significance for material research and development, product design, quality control and other fields.

Specifically, the main uses of end-rotating friction loss testing machines include: Material tribological performance evaluation: By measuring the friction coefficient, wear amount and other parameters of the material, the tribological performance of the material is evaluated, which provides a basis for the selection and design of the material.

Lubricant performance evaluation: In the process of rotary friction, the use of lubricants has an important impact on the friction and wear properties of materials.

The test machine can be used to evaluate the lubrication performance of lubricants under rotating friction conditions.

It provides reference for the selection and use of lubricants.

Durability test: For products that need to withstand rotating friction loads, such as mechanical seals, bearings, etc., the tester can be used to perform durability tests to assess the service life and reliability of the product.

Technical Parameters

Working range of axial test force (stepless adjustable) 10-1000N Relative error of test force ±1% Automatic retention of test force for a long period of time Display value error ±1% FS (Maximum test force) Test force exceeding the maximum test force Alarm Measuring range of friction force 10～500N Relative error of friction force ±2% Force value exceeds the difference Automatic alarm Spindle speed range 50～2000r/min Spindle speed range error ±10r/min Specimen seating stroke >45mm Spindle motor power 4kW Tester time display and control range 1s～9999min Test revolution display and control range 9999999s Overall size of the tester Approx.

1200×870×1700mm Net weight of testing machine 850kg
