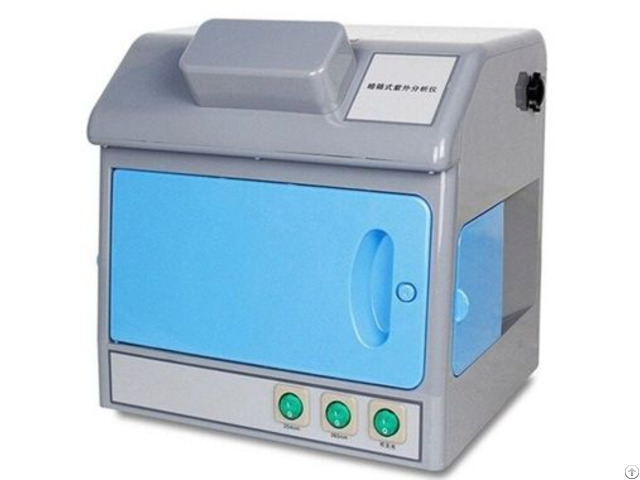

Ultraviolet Light Inspection Chamber - China

Scope of application

Coatings and paints: Used to test phosphors in various substances such as plastics, paints and coatings Aluminum foil: Used to test fluorescent substances in aluminum foil and other substances Paper: Used to test fluorescent substances in paper and other related paper classes in various substances Plastics: Used to test fluorescent substances in plastics and other substances.

Standards

GB/T 16422.3、GB/T 14522、ASTM G154 (non-metallic materials)、 ISO 4892-3 (plastics)、SAE J2020 (automotive exterior parts) Product Advantages

Enables precise detection and analysis of fluorescent substances using specific UV wavelengths.

Versatile application across diverse materials including coatings, paints, aluminum foil, paper, and plastics.

Utilizes a controlled chamber environment for consistent and repeatable UV exposure and observation.

Incorporates a camera system for capturing images, allowing for visual comparison and documentation of fluorescent responses.

Features both UV light sources (254nm, 365nm) and a standard visible light source (D65) for comprehensive analysis.

Supports quality control, impurity detection, and material authentication processes.

Provides a non-destructive testing method.

Product Features

UV Light Sources: Integrated lamps providing specific ultraviolet wavelengths, typically 254nm (short-wave UV) and 365nm (long-wave UV), which excite different fluorescent compounds.

UV Filter: A filter with dimensions of 200 x 50mm to control the emitted UV light.

Visible Light Source: A D65 standard illuminant for visual comparison under controlled white light conditions.

Camera System: Integrated within the chamber to capture images of the samples under UV or visible light.

Chamber Design: A light-tight enclosure to ensure controlled lighting conditions and protect the operator from UV exposure.

Host Unit: The main control unit of the analyzer.

Picture Comparison Function: Software or hardware capability to compare captured images (e.g., side-by-side display of samples under UV).

Main parameters

Ultraviolet wavelength: 254nm, 365nm Filter size: 200×50mm Visible light: D65 Power supply: 220V, 50HZ Standard configuration: Host, compare pictures
