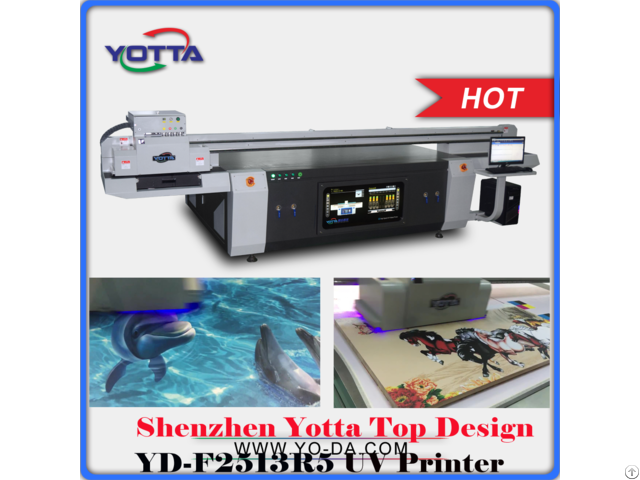

Uv 2513 Inkjet Flatbed Printing Machine For Acrylic Pvc Wood Metal Glass - China

GENERAL INTRODUCTION:

Model No.

YD-F2513R5

Print size

2500mmx1300mm

Print head

G5 head, all color, Droplets of variable technology, max ink droplets35pl, min up to 7pl Lifting function intelligent ink vehicle lift

Print color

C, M, Y, K, White

Print height

100mm File format

TIFF(RGB&CMYK)\BMP \PDF\EPS\JPEG etc

Print weight

Precision Nondestructive weight100KG

Print resolution

Max 600*2400dpi

Ink curing systems

UV led lamp imported from America

Power requirement

AC220/110±10, 50HZ~60HZ, 3000W

Interface mode

High-speed USB transfer interface

Software outputs

Photo Print/Maintop RIP(Windows 2000, XP)

Operation system

Windows 98, Me XP, 2000, 7

Printer weight

1300KG

Working environment

the optimum temperature: 15-35, Relative humidity 20%-80%

Printer size

3.5m x2.1m x1.2m Package size

3.66m*2.2m*1.43m FEATURES:

1 - Using original industrial ricoh printhead, adopt UV Curing Drop-on-demand piezoelectric inkjet print technology, print resolution achieve excellent 600*2400dpi.

2 - Adopt unique Double Ink Supply System, double print head with synchronous color & white ink printing; filling with different types of ink is available also.

3 - Ink supply system with automatic ink level alarms, thermostaticcontroller, constant pressure system and self-pokingarrangement, ensures printing Ink fluency without interruption, effectively preventing printhead clogs.

4 - LED touch screen operation panel, easy to learn and operation.

5 - Automatic detection of medium thickness and auto set the nozzle height, maximum media of thickness can be 100 mm.

6 - Automatic printhead clean system, owning anti-blocking, auto flash and moisturizing function.

7 - Using Intelligent converter, automatic adjust the vacuum platform suction according to the different media size.

High performance America imported UV led lamp with long lifetime up to 50000H, smart adjust the power of the lamp according to the different printing media, ensures the drying jobs and enhance adhesion of the UV ink .

8 - Adopt High accuracy and wearproof double ball screw transmission device, ensure the print resolution
