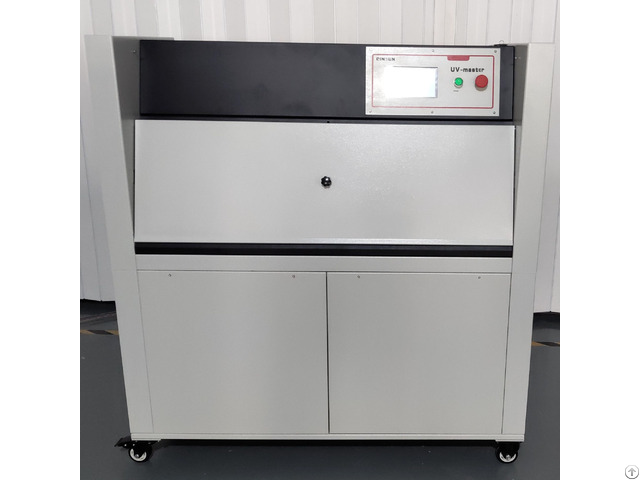

Uv Condensation Aging Test Chamber - China

Standard

ASTM G154 - ISO 4892-3 - JIS K 7350 - and SAE J2020 for UV exposure testing.

IEC 60068-2-78 for condensation and humidity resistance evaluations.

Technical Parameters

Parameter Specification

Temperature Range UV Mode: RT+10°C to 70°C / Condensation Mode: RT+10°C to 50°C

Humidity Range 45%–95% RH (condensation phase)

UV Wavelength UVA-340nm (295–360nm) or UVB-313nm (280–315nm)

UV Lamp Power 40W × 2 (user-replaceable)

Cycle Timer 1–9999 hours (adjustable)

Sample Capacity 48 standard specimens (150×70mm)

Power Supply AC 220V/50Hz or 110V/60Hz (customizable)

Chamber Dimensions 1100mm (L) × 500mm (W) × 1350mm (H)

Weight 180kg (net)

Product Advantages

Precision Environmental Control Independent regulation of UV intensity (0.1–1.5 W/m²), temperature (RT+10°C to 70°C), and condensation cycles for accurate simulation of natural weathering.

Programmable cycles combine UV exposure and condensation phases to replicate years of outdoor aging in weeks.

Energy-Efficient Performance Dual UV lamp system reduces energy consumption by 30% compared to traditional models.

Self-contained water recycling system minimizes resource waste.

Durable & Low-Maintenance Design Stainless steel interior resists corrosion from prolonged humidity exposure.

Easy-access water tank and replaceable UV lamps (lifespan ≥1.600 hours) simplify maintenance.

User-Friendly Operation 7-inch touchscreen interface with multi-language support (English/Spanish/Chinese) .

USB data port for real-time test logging and analysis.

Product Features

Dual-Mode Testing: Cycle between UV irradiation (simulating sunlight) and condensation (mimicking dew/rain) automatically.

Fluorescent UV Lamps: UVA-340 or UVB-313 options to match specific wavelength requirements.

High-Humidity System: Heated water tank generates vapor for 100% RH condensation control.

Sample Observation Window: Tempered glass door with LED lighting for in-process monitoring.

Safety Protection: Over-temperature alarm, water shortage alert, and emergency stop function.
