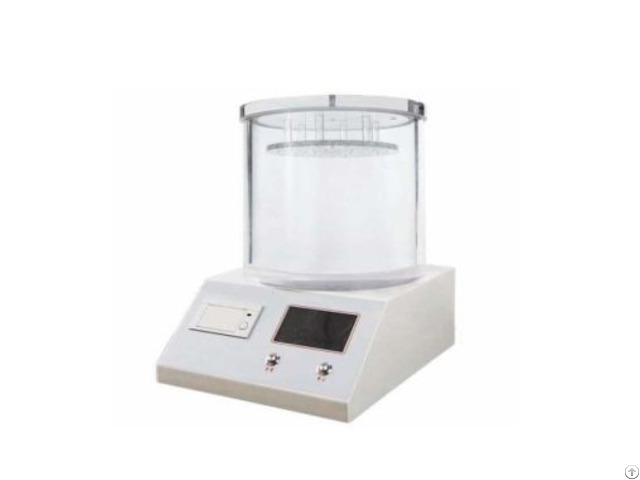

Vacuum Leak Instrument - China

Vacuum Decay Leak Tester specializes in the detection of leaks in ampoules, vials, injection bottles, freeze-dried powder injection bottles, and pre-filled packages.

Test Standards:

This test instrument conforms to many national and international standards: USP1207 - YY/T 0681.18-2020 Product Features:

Micro leaks are detected in packages.

The samples can be reused to reduce costs effectively.

Environmental temperature and humidity monitoring device.

Detect small and large leaks and the system determines qualified or unqualified automatically.

Test method: Vacuum Decay Method Test time is less than 30s.

Test chambers can be selected for different samples and can be easily replaced.

Print test results automatically, ensuring accuracy and objectivity.

Statistical analysis is automatically performed on the test results, including yield statistics and sample normal distribution chart.

Equipped with micro printer, USB.

Automatically save, query, and export reports to Excel and PDF formats.

Meet GMP requirement, user-graded permission setting, historical record audit tracking function.

PC software is optional.

Technical Specifications:

Application: Ampoule, Vial, Injection Bottle, and Pre-filled Package Test Method: Vacuum Decay Method (Non-destructive Test) Test Chamber: Customization per Samples Vacuum Degree: 0 ~ -100 kPa Testing System: Dual-sensor Technology Detection Sensitivity: 1 ~ 2 μm in diameter Test Time: Less than 30s Vacuum Source: Vacuum Pump Environment Temperature: 15°C ~ 30°C Relative Humidity: Up to 80%RH.

No condensation.

Power Supply: AC 100-240V 50/60Hz (can be changed to local requirement) Instrument Dimension: 320 mm (W) x 520 mm (D) x 350 mm (H) Net Weight: 20 kg
