Varco Top Drive Spare Parts For Tds9sa Tds11sa - China

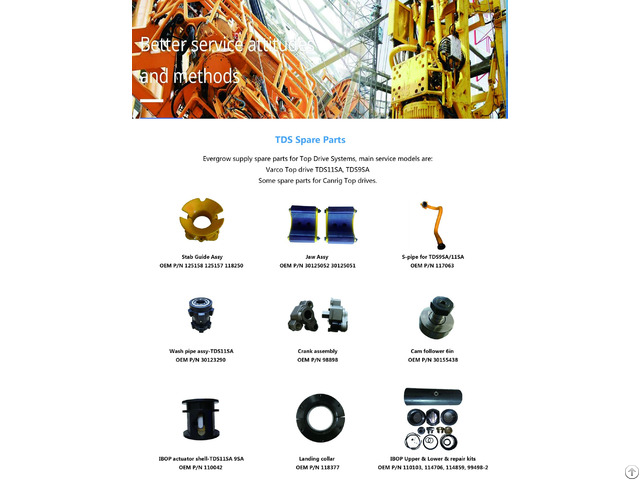

We could supply Varco Top drive spare parts.

Mainly for TDS9SA, TDS11SA, and some parts for CANRIG AND TESCO, welcome to contact us for details.

Item Product Description OEM Part Nos

1 IBOP, UPPER 110103-500

2 IBOP, UPPER, H2S TRIM 110103-502

3 IBOP, LOWER 114706-500

4 IBOP, LOWER, H2S TRIM 114706-502

5 S-PIPE, RH, WELDMENT, 5000 PSI 117063

6 JAW ASSY 30125052

7 JAW ASSY 30173233

8 JAW ASSY 125053

9 JAW ASSY 125051

10 "JAW ASSY, 3.00-4.00 OD TOOL

JOINT, NC26" 118958

11 JAW ASSY 85786

12 "JAW ASSY, 4.00-5.125 OD TOOL

JOINT, NC31-NC38" 80492

13 JAW ASSY 122109

14 STAB, GUIDE ASSY 125158

15 STAB, GUIDE ASSY 30123114

16 STAB, GUIDE ASSY 118250

17 CAM FOLLOWER 79824

18 ROLLER 71847

19 CAM FOLLOWER 6”DIA 30155438

20 BEARING, CAM FOLLOWER 30158767-04

21 BEARING, CAM FOLLOWER 80784

22 ADAPTER, S-PIPE 109523

23 STABILIZER, FRONT 30124898

24 LINER, STABILIZER 30158690

25 CRANK ASSEMBLY, IBOP 98898

26 repair kit, lower IBOP 99498-2

27 Repair Kit complete LWR H2S 99503-2

28 Repair Kit complete Upper 114859

29 Repair Kit complete Upper H2S 114860-2

30 FILTER, HYDRAULIC 30173216-1

31 FILTER GEAROIL 30111013-1

32 BUSHING, TRUCITE 119358

33 SEAL, WIPER 119547

34 GLYD RING ROTARY 10.000 ROD 118375

35 GYLD RING ROTARY 11.500 ROD 30119143

36 RING, THRUST 30119357

37 GLYD RING ROTARY 11.000 ROD 30119319

38 PISTON RING 30173156

39 SHELL, ACTUATOR, IBOP 110042

40 MANIFOLD, TDS-9 (MACHINING) 109547-2

41 CARRIAGE, LEFT, 30'' SETBACK, DS 124535

42 CARRIAGE, RIGHT, 30'' SETBACK, ODS 124536

43 CARRIAGE ASSY 124538

44 MAIN SHAFT W/LANDING COLLAR 121131

45 SLEEVE, WEAR 91829-1

46 LINER, STEM, UPPER 98290

47 REPAIR KIT – SOFT SEALS 99498-1

48 CRANK, OPER-RH 110118

49 CRANK, OPER-LH 110128

50 SET, SEAT/BALL 99500

51 Caliper, Disc Brake 109528

52 Bushing, Bail Pin 109507

53 Set, Seat/Ball 30177892

54 Set, Seat/Ball 30178893

55 BALL/SEAT-SET UPPER IBOP, EXT STOP 30177204

56 Basic Tieback Kit 30154685-100

57 HOUSING, SHOT PIN 30151953

58 GEAR, DRIVE 30156256

59 GEAR, COMPOUND 30156250

60 ASSY, HYD DRIVE, SHOTPIN 30151875

61 WASH PIPE ASSY, 3" BORE 7500PSI 30123290

62 BARREL, STEEL, 3″ WASH PIPE 30123289

63 Wash PIPE PACKING SEAL 30123290-PK

64 BOX, PACKING ASSY, 3"WASH PIPE 30123563

65 NUT, 3"WASH PIPE 123284

66 RING, HOLDING, 3"WASH PIPE 30123288

67 SPACER, UPPER, 3"WASH PIPE 30123285

68 SPACER, MIDDLE, 3"WASH PIPE 30123286

69 SPACER, LOWER, 3"WASH PIPE 30123287

70 FITTING, GREASE-STRAICHT EXT 53219-1

71 SCREW, SOCKET HD-DOG NOSE 30123564

72 O-RING 51300-348-F

73 RING, SNAP 30123562

74 PIN 51206-4-S

75 PISTON 12820

76 MANIFOLD 114174

77 PISTON 12820

78 CRANK, ASSEMBLY 30158189

79 YOKE, IBOP ACTUATOR PH75 30157225

80 BLADDER, RESERVOIR 4 gallon 110191-501

81 BLADDER, RESERVOIR 5 gallon 110191-500

82 ROTOR, BRAKE 109555

83 SHOT PIN, PH-100 30173958

84 SLEEVE, SHOT PIN, PH-100 30151951

85 Bushing, Shot pin, SQ, FLNG 30151961

86 SEAL, ROD, 1.5 BORE 110056

87 SEAL, PISTON 110061

88 SEAL, OIL, POLYPAK 91250-1

89 RING, SPACER 109539

90 PIN, BAIL 109506

91 BRAKE PAD 109528-1

92 PIN, LT, CRANK 30158164

93 RETAINER, SEAL, OIL 119359

94 LINER, STAB 30158690

95 JAW, TOOL JOINT 30124925

96 SHIELD, BEARING 30154362

97 RETAINER, BEARING, UPPER STEM, ALTERNATE 118668 30176112

98 BAIL, 500T, 120", MACH, TDS9S 109505-3

99 Hydraulic Fluid Bladder Assembly 110191-501

100 BLADDER, RESERVOIR TDS9S 5 gallon 110191-500

101 Shot Cylinder Piston Seal 110061-326

103 Pin Clevis, Cylinder Counterbalance 30172176-502

104 Pin, Clevis, Cylinder Counterbalance 30172176-BSC

105 Seal, Ring NOV 51300-348-F

106 RING, SNAP, 3"WASH-PIPE, TDS 30123562

107 PACKING SEAL 30123292

108 Pin, Bail 109506

109 Pin, Retaining Pipe Handler 119387

110 Cam Follower, 1.0" DIA x .

625" Stud 79824

111 Spacer 99168

113 Arm, Guide, TDS11 76442

114 Spring, TDS11 30157308

115 Link 1, Collapsible 30170445

116 Link 2, Collapsible 30170446

117 Flat washer 50814-N-C

118 U-BOLT, 350 TON 119139

119 Pin, Cotter 51435-20

120 Nut, Hex heavy (3/4-10) 50412-C

121 Pin, Cotter 51402-10-S

122 Washer Flat-Heavy 3/4" 51012-C

124 Seal 91923

125 Pin, Cylinder Mounting 30172154

126 Pin, Clevis 30119546

127 CLAMP, LINK TILT, 350 TON, WO# Varco TDS-9SA/11SA 119122

128 (MT)TUBE, HEAT EXCHANGER, ASSY, TDS9 122247-2

129 (MT)TUBE, HEAT-EXCHANGER, ASSY, TDS9 122247-1

130 Assy, Actuator, Counterbalance 110704

131 "CLEVIS, COUNTER BALANCE

CYLINDER" 111935

132 TUBE, ASSY, COUNTER BALANCE 111936

133 COMPRESSION SPRING 1.95 76443

134 Cylinder, Hyd, IBOP, Actuator, Assy, PH100 125594

135 Pin, Retainer, Collapsible 30170045

136 NUT, HEX-SLTD, (UNC-2B) 50514-C

137 Pulley for adapter 120119-1

138 Pulley for encoder 120119-2

139 Pin 56405-20-C

140 Valve hydraulic XFOA-XXN 93667-M13

141 Test port SAE-6 93024-6SAE

142 Compound 53200-242

143 56606-8 Varco Fitting angle 56606-8

144 1-3/4" Bushing cable entry 56600-16-12
