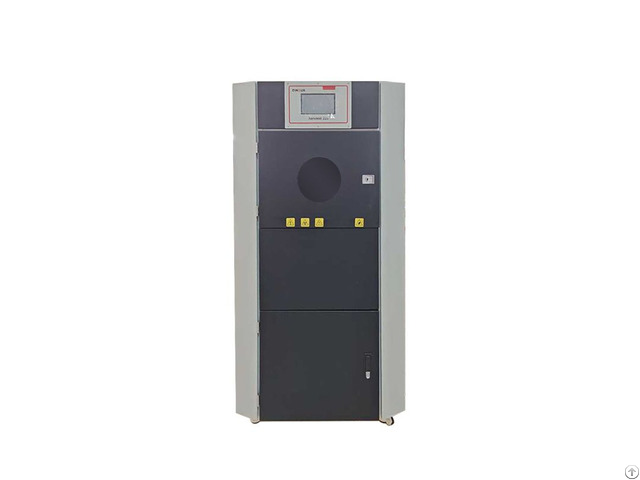

Xenotest Light Fastness Tester Si220 Suntest - China

Application

Qinsun si220 is a highly economic material color lightfastness tester that can test up to 250 samples simultaneously.

It complies to industry standards ISO 105- B02 - AATCC TM16 (option 3), and Marks & Spencer C9 - C9A.

This light fastness tester is also apply to light color fastness, anti-climate color fastness, light & perspiration color fastness and light aging tests of paint, dye, coating, rubber, plastic, wood floor, paper and other materials, it have anti-climate functions of exposing to the rain, revolution and mist spraying.

Standard Compliance

AATCC TM16-2004：Colorfastness to Light AATCC TM16.3：Colorfastness to Light AATCC TM169：Weather Resistance of Textiles: Xenon Lamp Exposure ASTM G155：Standard Practice for Operating Xenon Arc Light Apparatus for Exposure of Non-Metallic Materials ISO 4892-2：Plastics - Methods of exposure to laboratory light sources - Part 2: Xenon-arc sources ISO 16474-2：Paints and varnishes - Methods of exposure to laboratory light sources - Part 2: Xenon-arc lamps ISO 105-B02：Textiles - Tests for colour fastness - Part B02: Colour fastness to artificial light: Xenon arc fading lamp test ISO 105-B04;Textiles - Tests for colour fastness - Part B04: Colour fastness to weathering: Xenon arc test ISO 105-B10: Textiles - Tests for colour fastness - Part B10: Artificial weathering - Exposure to filtered xenon-arc radiation M&S C9: Colorfastness to Light M&S C9A: Colorfastness to wet light in the presence of alkaline or other chemical residues For more relevant testing standards, please consult our professional engineers.

Product Advantages

Energy-Efficient Air Cooling System Eliminates the need for water chillers, reducing energy consumption by up to 40% compared to traditional water-cooled models.

Low-noise operation (<60 dB) ensures a quiet testing environment.

Cost-Effective Maintenance No water pipes, filters, or coolant replacements required.

Simplified design minimizes downtime and maintenance costs.

Rapid Thermal Cycling Achieve temperature shifts from -20°C to 80°C in <10 minutes, accelerating test cycles without compromising accuracy.

Advanced Spectral Control Precision filters mimic natural sunlight (UV, visible, and IR spectra) for realistic aging simulation.

User-Centric Design 10.4” touchscreen with intuitive interface, multi-language support, and remote monitoring via Wi-Fi/Ethernet.

Product Features

Dual-Mode Cooling Technology Combines forced-air convection with a high-efficiency heat sink to stabilize lamp temperature during prolonged tests.

Intelligent Irradiance Control Closed-loop feedback system maintains ±0.02 W/m² irradiance accuracy (300–400 nm range).

Programmable Climate Control Independent settings for temperature (-20°C to 100°C), humidity (10%–95% RH), and rainfall simulation (0–50 cycles/hour).

Safety First Overheat protection, emergency stop, and UV-shielding acrylic door ensure operator safety.

Modular Expandability Add-on modules for ozone control, salt spray corrosion, and mechanical stress testing.

Accessories

Standard Kit: 1 × Air-Cooled Xenon Lamp (6500h lifespan) 2 × Adjustable Sample Racks (Max.

10 kg load) 1 × Calibrated Radiometer 1 × USB Data Logger (16GB) 1 × UV-Resistant Acrylic Viewing Window Optional Add-Ons: Humidity Control Module (-20°C to 80°C, 10%–95% RH) Remote Monitoring Software (IoT-enabled) Multi-Language Interface Pack (10+ Languages) Spare Lamp Kit (2x Xenon Lamps + Filters) Technical Parameters

Specification Details

Xenon Lamp Power 2.2 kW (Air-Cooled, 6500h lifespan)

Test Chamber Size 700 × 500 × 500 mm (W×D×H)

Temperature Range -20°C to 100°C (±2°C accuracy)

Humidity Range 10%–95% RH (±3% accuracy)

Irradiance Range 30–120 W/m² (300–400 nm, adjustable)

Test Cycles 1–9999 hours (programmable intervals)

Power Supply 220V/50Hz/60Hz, 20A (Single-phase)

Dimensions (W×D×H) 1200 × 800 × 1800 mm

Weight 350 kg (Net)
