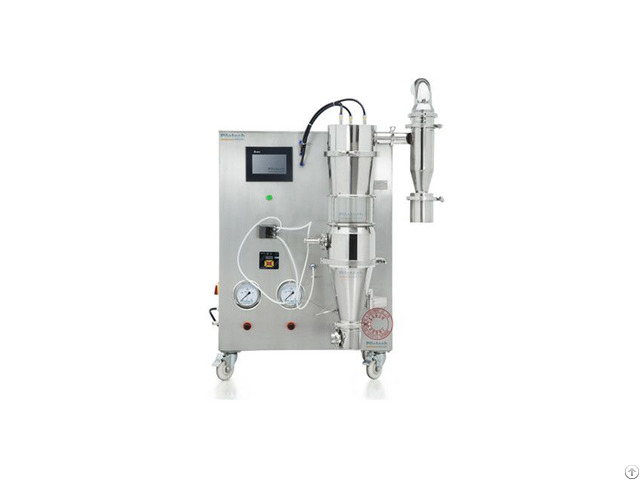

Yc 1800 Low Temperature Fluid Bed Spray Dyer - China

YC-1800 mini low temperature spray dryer is a kind of drying machine developed by our company based on years of experience in spray drying technology.

It applies to TCM products (juice products) with low melting point and high sugar content.

With YC-1800 spray dryer, the material will not stick to inner wall, coke or absorb moisture.

When common spray dryer is used for spray drying of extract of natural product from TCM (Chinese herbal medicine) and juice in laboratory, the material melts immediately after spray drying starts, and sticks to the bottle wall in drying chamber of spray dryer like sticky candy, because the material itself has a high content of sugar which can easily melt at high temperature.

Consequently, it is impossible for researchers to obtain the powder with good fluidity.

Sometimes, they have to add a large number of auxiliary materials (e.g. starch and cyclodextrine) to obtain powder, but the effect also is not very ideal.

YC-1800 spray dryer determines the technological conditions of spray drying based on characteristics and nature of materials.

It is featured by high degree of automation and easy operation, and meets the requirements of GMP.

The successful development of the dryer solves the technological difficulty that spray drying cannot be applied to many TCM products (juice products) with low melting point and high sugar content.

Moreover, it is also a new progress of spray drying in the research on application technology of Chinese pharmaceutical manufacturing.

Perfect combination of low temperature and high temperature With maximum inlet air temperature reaching 200°C, it can meet high temperature drying requirements of ceramics and other materials; with minimum inlet air temperature being 105°C, it is especially suitable for spray drying of traditional Chinese medicine, extracts of natural substances and other materials with sugar content.

No material will adhere to the wall during drying and materials are featured with excellent fluidity after drying.

SUS 304 stainless steel Spray chamber, cyclone separator, collector are all made of SUS 304 stainless steel & BOSILORICATE GLASS.

It can work in a no-pollution and stable environment, and sight glass equipped so the whole process can be inspected.

All the spare parts are easy to install and clean.

YC-1800 mini low temperature spray dryer principle The self-priming peristaltic pump delivers the sample liquid from a container through a small diameter jet into the main chamber.

At the same time an integral compressor pumps air into the outer tube of the jet which causes the liquid to emerge as a fine atomised spray into the drying chamber.

Heated air is blown through the main chamber evaporating the liquid content of the atomised spray.

The solid particles of the material, which are normally in a free flowing state, are then separated from the exhaust air flow by a cyclone and collected in the sample collection bottle.

The exhaust airflow is directed through a flexible 60 mm diameter hose direct to atmosphere or to an existing extraction system.

Sr.

no Parameter Pilotech YC-1800 low temperature spray dryer

1 Power 4000W

2 Voltage 220V

3 Frequency 50/60 Hz

4 Evaporating Capacity 1500ml/h for water

5 Airflow 0-330 mᶟ/h

6 max.

Inlet temperature 200⁰C

7 Heating power 3500W

8 Temperature precision ±1⁰C

9 Compressed air 4.2mᶟ/h, 2-5bar

10 Nozzle jet 0.7mm standard/(0.5/0.75/1.0/1 - 5/2.0mm available)

11 Nozzle type Two fluid nozzle

12 Possible particle size range 1-25µm

13 Mean Residence time 1.0-1.5 sec

14 Operation mode Automatic/Manual

15 Max.

Sample feed 2000ml/hr

16 Minimum sample volume 30ml

17 Seal of cyclone/cylinder Silicone

18 Inlet temperature 105～200⁰C

19 Cyclone separator material SUS-304 Stainless steel

20 Body material SUS-304 Stainless steel

21 Spray chamber material SUS-304 Stainless steel & borosilicate glass

22 collection bottle material SUS-304 Stainless steel

23 Sound <60db

24 Dimensions 950*800*1350

25 Weight 135KG

26 Display 7-Inch LCD display for Heat, Spray, Pump, Air pressure, de-blocker frequency

27 Thermal protection Blower does not stop until temp <90⁰C

28 Deblocking Automatic

29 Atomizer material SUS 316 Stainless steel
