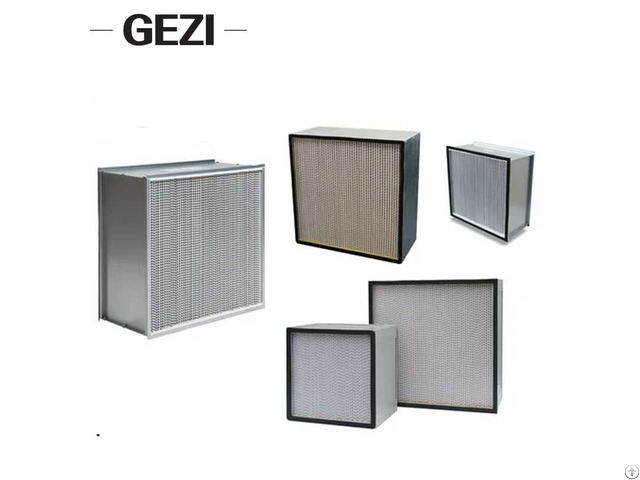

Mini Pleat Hepa Filter - China

Air volume and size range Thickness (D): Common 25mm (ultra-thin type), 50mm, 69mm Panel size (W×H) typical: 305×305×25/50mm; 610×610×25/50mm; 915×610×50/69mm; 1170×570×69mm Rated air volume: 305×305 (25mm): ≈250m³/h; 610×610 (69mm): about 1000m³/h; 915×610 (69mm): about 1500m³/h; 1170×570 (69mm): ≈1800m³/h Resistance/pressure difference Final resistance: Recommended ≤400–600Pa Environmental compatibility Operating temperature: continuous ≤80°C, instantaneous tolerance ≤100°C Humidity adaptation: 100% RH, suitable for humidity environment Frame material: optional aluminum alloy, galvanized steel, stainless steel, paper Advantages and Features 1 - Design without partitions: hot melting and molding of filter material, natural support between folds, no aluminum partitions are required 2 - Filter material type: ultrafine glass fiber, synthetic fiber, PTFE, PP, etc.

3 - Sealing materials: hot melt EVA, PU foam, AB glue, etc.

to ensure no leakage at the edges 4 - Frame strengthening: It has double-sided protection net or metal mesh support to enhance structural stability.

Application Scenarios 1 - Clean room terminal air filtration (pharmaceuticals, semiconductors, medical) 2 - Air treatment device (AHU, FFU system) 3 - High and clean demand for public spaces and commercial places 4 - Commercial electrical appliances such as vacuum cleaners and air purifiers
