Cutter Suction Dredger Water Flow 2500m3 H And Discharge Distance 1500m - China
price: 700000.00 Dollar US$
Quality certification:
Our company have been through ISO 9001 Quality system certification and CE certification
Design, construction, quality inspection is according to the standards and regulations of CCS and we have obtained 26 types of certificate of utility model patent and 23 types of certificate of design patent
R and D and technical team
Highling dredgers achieve first-class level in the world with Holland design and technology
Our company has research and development center, quality department and after-sales department
Number of staff is up to 800, including 50 senior engineers on dredger building and researching, 60 designers on machinery construction, 18 engineers on quality inspection, as well as 30 after-sales service engineers
Products are exported to more than 50 countries such as Bangladesh, Pakistan, India, Brazil, Argentina, Benin, Egypt, Poland, Nigeria, Ukraine, Indonesia, Korea
By virtue of advanced technology, stable and reliable quality, our company has gained great honors from the domestic and foreign enterprises
Based on honest, mutual benefit and development, we warmly welcome you visit our company and cooperate with each other

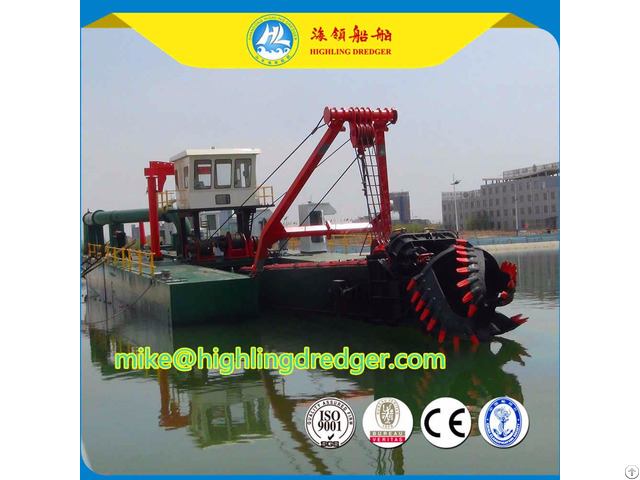

HL400 hydraulic cutter suction dredger (16inch 2500m3/h )
Dredger LOA 28.0m
Hull size 19.0*7.5*2.0m
Main pontoon 13.8*3.5*2.0m
Side pontoon 19.0*2.0*2.0m
Structure can be dismantle and re-assemble easily, box structure
Main engine brand and power 522kW
Auxiliary engine brand and power 224kW
Harbour generator 30kw/Cummins
Dredging pump Technology
Discharge pipe inner Dia.
400mm
Head 45m
Max.
dredging depth 13m
Water flow 2500m³/h
Solid sand capacity 500m³/h
Discharge distance 1500m
Cutter head 1450mm
Cutter power 70kw
Draught 1.4m
Displacement 180T
Hydraulic control system PLC Siemens
Wire rope pulling force (lifting winch )*quantity 80KN *1
Wire rope pulling force (traversing winch )*quantity 80KN *2
Operation room adjustable chair, movable side-window, air condition, PLC system, signal lights and floodlights
Total weight 110T
Total fuel oil consumption 112L/H
