Large Vertical Borer Vtl Machine Sale - China

price: 80000.00 Dollar US$

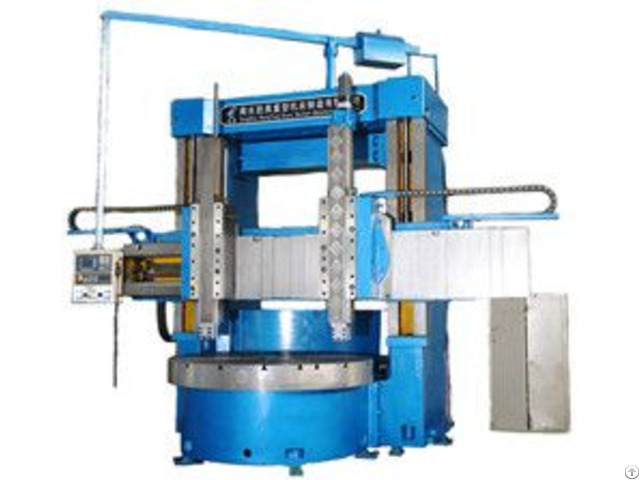

Large Vertical Borer Vtl Machine Sale

Products Photos Catalog Vertical Borer Vtl Photos Catalog

Hengshui Shengyong Heavy-duty Machine Tool Manufacturing Co., Ltd specializes in the researches, developments, manufactures and sells of metalworking machines: Vertical lathe, Vertical turning Lathe, Vertical turret lathe, CNC lathe, Lathe machine, Heavy duty lathes, Plano miller, Milling machine and boring machine etc.

Single column Vertical Lathe machine model:

C5112/C5116/C5118/C512 0/C5123/C5125/C5126

Maximum turning diameter: 1250/1600/1800/2000/2300/ 2500mm

Maximum height of workpiece: 1000/1000/1000/1200/1300/ 1350 mm

Maximum weight of workpiece 3.2 / 5 / 5 / 6 / 8 / 10 t

Double column Vertical Lathe machine model:

C5225/C5232/C5240/C525 0/C5263

Maximum turning diameter: 2500/3150/4000/5 000/6300mm

Table diameter : 2500/3150/4000/5000/6300 mm

Our factory video:

https: //youtu.

be/4xCWym-Fp9k

Technical specification of Feavorites CNC vertical machine lathes for sale C5225

1 Maximum turning diameter 2500mm

2 Maximum height of workpiece 1600/2000/2200/2500/3000 mm

3 Maximum weight of workpiece 10/20 t

4 Table diameter 2250 mm

5 Speed change of table 2~63 r/min

6 Maximum torque of table 63 KN/min

7 Vertical travel of tool post 1000/1250 mm

8 Horizontal travel of tool post 1400 mm

9 Rotation range of tool post ±30° Degree

10 Power of main motor 55 kw

11 Machine weight (About) 32~38 t


Company Contact:


  • Phone: 0086-18330891102

  • Address: No. 01, Shengyong Road, Matou Industrial Zone,Fucheng County,, Hengshui City, Hebei Province, China

  • Email: Email


Published date: November 23, 2016

  • Business Description: Hengshui Shengyong Heavy-duty Machine Tool Manufacturing Co., Ltd specializes in the researches, developments, manufactures and sells of metalworking machines: CNC lathe , Vertical lathe , vertical turning lathe, vertical turret lathe, Heavy duty horizontal lathe machine, Gantry milling machine, plano miller, boring milling machine and roll turning lathe etc.

    If interested, feel free to contact us
