Shsinopower Com Steel Coil Slitting Machine - China

steel coil slitting machine-shsinopower.

com

Coil thickness: 0.4-4.0mm

Coil width: 400-2000mm

Productin speed: 20-100m/min

Pipe material: HR, CR, PPGI, GI, AL, CU, etc

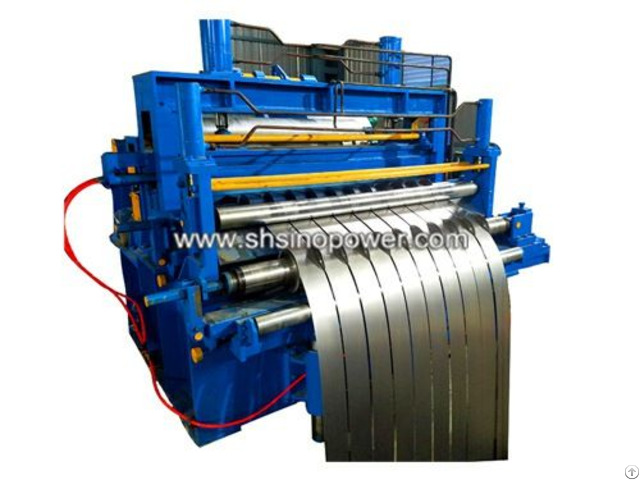

SP(0.4-4.0) Steel coil slitting machine is applicable to coils of various specifications.

It is used for steel slitting the coil into required width for the use of punch line through the procedure of uncoiling, pre-leveling, cropping, steel slitting and recoiling.

It has advantages such as proper layout, easy operation, highly automated and high production efficiency.

1 - Process Flow of steel coil slitting machine Raw material platform→ carrying coil car→ hydraulic uncoiler→ feeding guide plate→ pair pinching roller, five rollers leveling→ coil head cutting→ front looping table→ side guiding table→ pinching machine→ disc slitting→ curling machine→ back looping table→ pre-feeding coils→ tension table→ rewinding→ discharging car→ hydraulic bracket→ Electric control 2 - Technical Parameters of steel slitting machine

Model Thickness Coil Width Number of Strip Line Speed Coil Material

mm mm pcs m/min SP(0.3-3) 0.3-3.0 400-1600 8~20 0~120

SP(0.4-4) 0.4-4 500-2200 8~20 0~100

SP(1-6) 1-6 500-2200 5~15 0-80

SP(1-8) 2-8 500-2200 5~12 0-60

SP(2-10) 2-10 500-2200 3~10 0-60

SP(2-12) 2-12 500-2200 3~10 0-40

SP(3-16) 3-16 500-2300 2~8 0-40

SP(5-20) 5-20 500-2300 2~8 0-20

Please Visit our web site for more details or get offers from our email: SINO POWER INDUSTRIAL CO., LIMITED -shsinopower.

com

Mail: shawn(at)hsinopower.

com

(Please send inquiry to above email address, don't send to below tradykey form, Thanks)

Company Contact:

• Posted By: SINO POWER INDUSTRIAL CO., LTD

• Phone: +8615000437616

• Address: KANGQIAO INDUSTRIAL AREA, Shanghai , SHANGHAI , China

• Email:

• Website: https://www.shsinopower.com

• Business Description: Sino Power Industrial Co., Limited -shsinopower.

  com metal Processing machinery manufacturer with the factory covers an area of 85, 000 Square meters and has more than 350 employees and over 25 years on metal cold forming machine design, manufacturing, sales and after-sales experience.

  The main design and products are: High Frequency Welded Pipe Mills, steel coil slitting machine line, cut to length line, roll forming machine, cold rolling mill and related roller /molds etc.

  Till now, Sino Power Group have successfully supplied world-class products and service to over 30 countries and areas around the world, such as: Poland, Spain, Bulgaria, Turkey, Egypt, Saudi Arabia, India, Vietnam, Malaysia, Thailand, Philippines, Pakistan, Kazakhstan, Ethiopia, etc.
