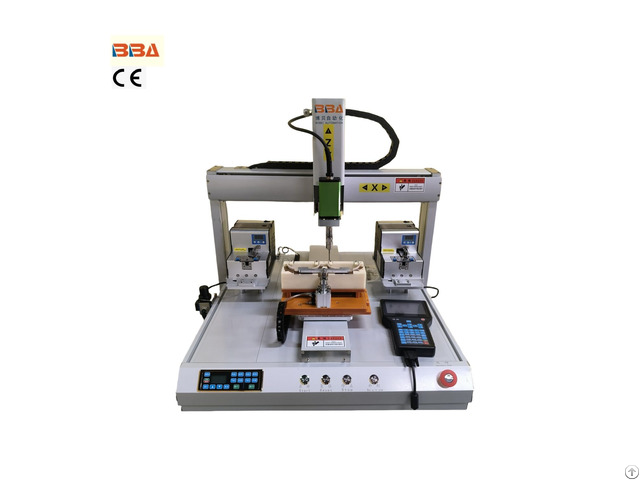

BBA Desktop dual Working Platform Blowing Mode screw dispenser automatic Screw Fastening Feeding Machine

The machine consists of:

– A working table.

– A fixed frame/

– Two sliding platforms, each with a holder (fixture)

for workpieces.

These platforms can move back and

forward along Y axis.

– 1 servomotor screw driver, which rotate screw

driver bits and can move right and left along the X

axis.

– 1 screw driver bit, which can move up and down

along the Z axis, rotating at the same time.

– Motion devices, which can drive the abovementioned parts along X/Y/Z axis.

– An automatic screw feed device.

– Data input sensors.

– A control system.

– A handheld programmer console.

Full Series of BBA Screw Assemble machinery

Model BBA-331LS BBA-5441LS BBA-6441LS CUSTOMIZED

(Single Y platform) (Double Y platform) (Dual screw feeding systems)

Power supply AC 110/220V 50/60HZ

Stroke X 300mm X 500mm X1/X2 600mm To order

Y 300mm Y1/Y2 400mm Y1/Y2 400mm

Z 100mm Z 100mm Z 100mm

Maximum Load Weight 10KG (for work platform) To order

Screwdriver torque 0.015~2.5N.

m More than 3.0N.

m

Moving speed 10-800mm/s

Air pressure 0.5-0.7MPa

Position accuracy ±0.02mm/axis

Program capacity 999 groups/1000 points per group

Motor system Micro Precision Stepping Motor

Transmission mode Precision toothed belt+ guide rail

Universal screws M1-M8

Control panel Handheld Teaching pendant with display screen

Work efficiency 1.5~2s/pcs

Work environment Temperature: 5-50ºC Humidity: 20-90%

Weight 70kg 90kg 120kg To order

External Machine Size(L*W*H) 700*630*700mm 820*730*700mm 920*730*700mm To order
