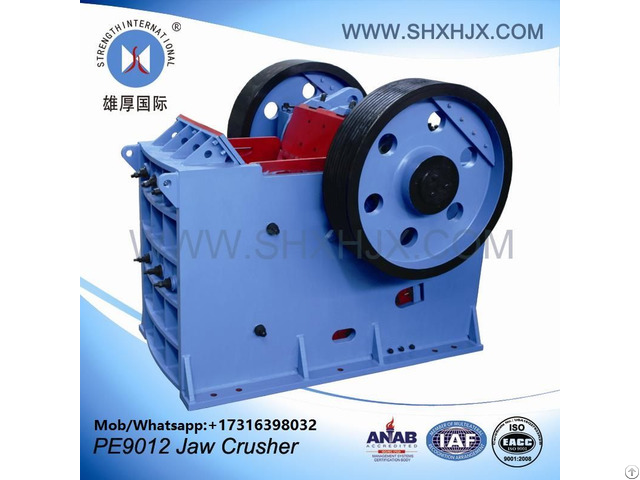

Factory Price Pe Series Quarry Jaw Crusher Application In Limestone - China

This series jaw crushers have a feature of big crushing ratio, uniform finished product size, simple structure, reliable operation, easy maintenance, low operation cost.

It is widely used in mining, quarry, metallurgy, building, highway, railway, water conservancy and chemical industries for crushing various materials with compression strength less than 320Mpa.

It is the ideal equipment for the primary and secondary crushing.

Model: PE400×600

Feed Opening Size(mm): 400×600

Max.

Feeding Size (mm): 340

Adjustable Range of Discharge Opening (mm): 40-100

Producing Capacity (m3/h): 10-34

Eccentric Shaft Rotation Speed (rpm): 275

Electric Motor Power (kw): 30

Weight (t): 6.5 Model: PE500×750

Feed Opening Size(mm): 500×750

Max.

Feeding Size (mm): 425

Adjustable Range of Discharge Opening (mm): 50-100

Producing Capacity (m3/h): 20-52

Electric Motor Power (kw): 55

Weight (t): 10.3 Model: PE600×900

Feed Opening Size(mm): 600×900

Max.

Feeding Size (mm): 500

Adjustable Range of Discharge Opening (mm): 65-160

Producing Capacity (m3/h): 30-75

Electric Motor Power (kw): 55-75

Weight (t): 15.5 Model: PE750×1060

Feed Opening Size(mm): 750×1060

Max.

Feeding Size (mm): 630

Adjustable Range of Discharge Opening (mm): 80-140

Producing Capacity (m3/h): 72-130

Weight (t): 28 Model: PE800×1060

Feed Opening Size(mm): 800×1060

Max.

Feeding Size (mm): 640

Adjustable Range of Discharge Opening (mm): 100-200

Producing Capacity (m3/h): 85-143

Weight (t): 30 Model: PE900×1200

Feed Opening Size(mm): 900×1200

Max.

Feeding Size (mm): 750

Adjustable Range of Discharge Opening (mm): 95-165

Producing Capacity (m3/h): 87-164

Weight (t): 50 Model: PE1000×1200

Feed Opening Size(mm): 1000×1200

Max.

Feeding Size (mm): 850

Adjustable Range of Discharge Opening (mm): 195-265

Producing Capacity (m3/h): 197-214

Eccentric Shaft Rotation Speed (rpm): 200

Weight (t): 51 Pre-sales Service

* Offer professional suggestions for equipment selection.

* The equipment can be modified the design according to

customers requirements besides standard model.

* Planning site and offer the suitable flow schemes.

In-sales Service

* Follow up on the progress of the production and quality of

the equipment.

* Ensure the delivery, offer relative drawings, and record the

trial run.

* To assistant customer checking and acceptance the

equipment.

After-sales

* Send professional technicians to assist in installation, commissioning and operation in production site.

* Training the operator and maintainer to ensure the normal operation of the equipment.

* For any troubles aroused under warranty, we will offer solutions within 48 hours and send technician to reach the site ASAP if needed.

About Xionghou

Shanghai Xionghou Machinery Manufacturing Co., Ltd. provides you an overall solution for your mine project with a production capacity ranging from 40t/h to 600t/h complete crushing and screening plants which including vibrating feeders, primary and secondary crushers, screens, sand makers, sand washers, grinding mills, conveyors, dust collectors, centralized electronic control and associated equipment.

Xionghou’s professional technology and after-sales service team provide customer the whole mining operation, including geological survey, production line design, equipment assembly, commissioning, debugging, training, safety production management, and relative services.

For equipment problems, we would serving the customers with timely solutions to resume production and do an analysis after that.
