High Quality Pf Series Impact Crusher For Granite And Marble - China

This series of impact crusher are designed for crushing ores and rocks with particle sizes less than 100-700mm and compression strength no more than 350Mpa.

It features of big crushing ratio, high-efficiency crushing, product after breaking with cubic shape, selective crushing and etc.

It is suitable for crushing different compression strength of rocks and is widely used in mining, cement and concrete industries.

Also used as secondary crusher to produce high quality stone for highway, reservoir, railway, airport and other fields.

Model: PF1007

Spec of Rotor (mm): φ1000×700

Feed Opening Size (mm): 400×730

Max.

Feed Size (mm): 300

Producing Capacity (t/h): 30-50

Weight (t): 9.5

Overall Diameters (mm): 2400×1558×2660 Model: PF1010

Spec of Rotor (mm): φ1000×1050

Max.

Feed Size (mm): 350

Producing Capacity (t/h): 50-80

Motor Power (kw): 55

Weight (t): 12.2

Overall Diameters (mm): 2532×1985×2196 Model: PF1210

Spec of Rotor (mm): φ1250×1050

Feed Opening Size (mm): 400×1080

Motor Power (kw): 110

Weight (t): 14

Overall Diameters (mm): 2638×2037×2713 Model: PF1214

Spec of Rotor (mm): φ1250×1400

Feed Opening Size (mm): 400×1430

Producing Capacity (t/h): 130-180

Motor Power (kw): 132

Weight (t): 18.6

Overall Diameters (mm): 2580×2400×2810 Model: PF1310

Spec of Rotor (mm): φ1280×1050

Feed Opening Size (mm): 800×1080

Producing Capacity (t/h): 70-120

Weight (t): 13.5

Overall Diameters (mm): 3165×2120×2610 Model: PF1315

Spec of Rotor (mm): φ1320×1500

Feed Opening Size (mm): 1530×800

Producing Capacity (t/h): 100-180

Motor Power (kw): 185

Weight (t): 21

Overall Diameters (mm): 2840×2748×2556 Model: PF1316

Spec of Rotor (mm): φ1300×1600

Feed Opening Size (mm): 800×1640

Producing Capacity (t/h): 150-200

Motor Power (kw): 200

Weight (t): 19.5

Overall Diameters (mm): 3096×2850×2667 Model: PF1320

Spec of Rotor (mm): φ1320×2000

Feed Opening Size (mm): 800×2030

Producing Capacity (t/h): 200-250

Motor Power (kw): 250

Weight (t): 29

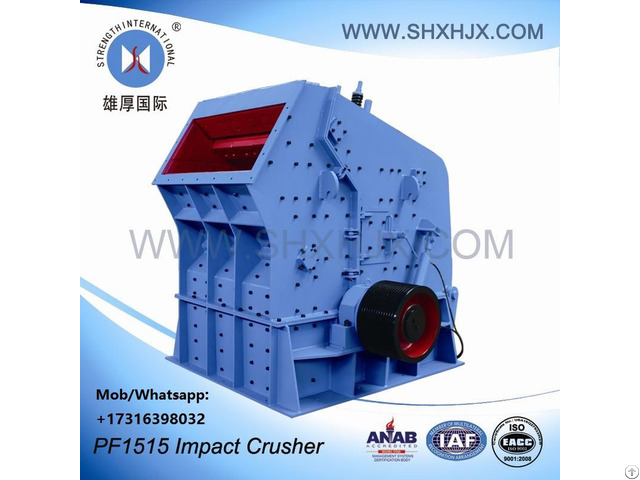

Overall Diameters (mm): 3280×3222×2643 Model: PF1515

Spec of Rotor (mm): φ1500×1500

Feed Opening Size (mm): 850×1580

Producing Capacity (t/h): 200-280

Motor Power (kw): 315

Weight (t): 29.5

Overall Diameters (mm): 3550×2835×3270 Model: PF1620

Spec of Rotor (mm): φ1600×2000

Feed Opening Size (mm): 1200×2030

Producing Capacity (t/h): 400-500

Motor Power (kw): 560

Weight (t): 55

Overall Diameters (mm): 4290×3490×4170 Model: PF1822

Spec of Rotor (mm): φ1800×2200

Feed Opening Size (mm): 1580×2300

Producing Capacity (t/h): 600-850

Motor Power (kw): 710

Weight (t): 78

Overall Diameters (mm): 5140×3890×4900 Pre-sales Service

* Offer professional suggestions for equipment selection.

* The equipment can be modified the design according to

customers requirements besides standard model.

* Planning site and offer the suitable flow schemes.

In-sales Service

* Follow up on the progress of the production and quality of

the equipment.

* Ensure the delivery, offer relative drawings, and record the

trial run.

* To assistant customer checking and acceptance the

equipment.

After-sales

* Send professional technicians to assist in installation, commissioning and operation in production site.

* Training the operator and maintainer to ensure the normal operation of the equipment.

* For any troubles aroused under warranty, we will offer solutions within 48 hours and send technician to reach the site ASAP if needed.

About Xionghou

Shanghai Xionghou Machinery Manufacturing Co., Ltd. provides you an overall solution for your mine project with a production capacity ranging from 40t/h to 600t/h complete crushing and screening plants which including vibrating feeders, primary and secondary crushers, screens, sand makers, sand washers, grinding mills, conveyors, dust collectors, centralized electronic control and associated equipment.

Xionghou’s professional technology and after-sales service team provide customer the whole mining operation, including geological survey, production line design, equipment assembly, commissioning, debugging, training, safety production management, and relative services.

For equipment problems, we would serving the customers with timely solutions to resume production and do an analysis after that.
