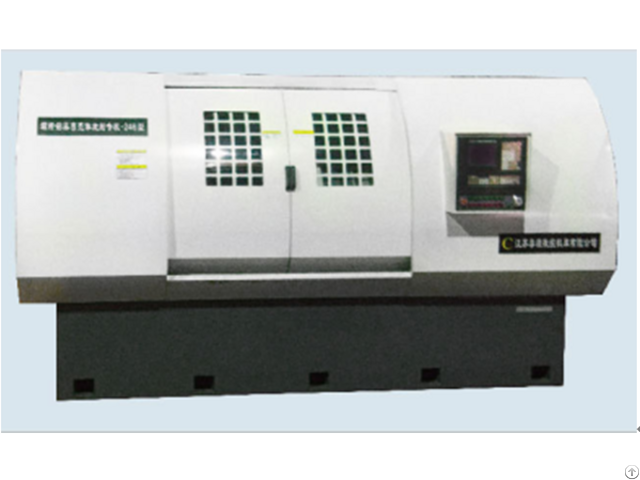

Bent Housing Rotary Cut Machine - China

This is the special rotary cutting machine for PDM drill and bent housing.

Work piece will be supported by dual chucks.

Machine working is controlled by numerical control system, compaired with conventional machining, it can save raw material, improve the working efficiency.

We can make and supply kinds of PDM drill parts such as: bent housing, bypass valve body, joint etc as per drawing offered by customers.

Items Unit HYSK-246

Spindle bore diameter mm 255

Max.

machining length mm 1400

Z-axis Max.

travel mm 1500

X-axis Max.

travel mm 100

Spindle speed steps 级 Stepless

Spindle speed r/min 20-350

Range of machining diameter mm φ90～φ250

Z-axis feed speed mm/min 0～1200

X-axis feed seed mm/min 0～1200

Setting accuracy of position mm 0.001

Headstock servo motor power (Z) kW 1.3

Headstock servo motor power (X) kW 1.3

Tailstock gear motor power (Z) kW 1.5

Hydraulic station motor power kW 1.5

Main motor power kW 7.5

Machine weight ㎏ 6500

Machine dimension(L×W×H) mm 3800*2200*1900
