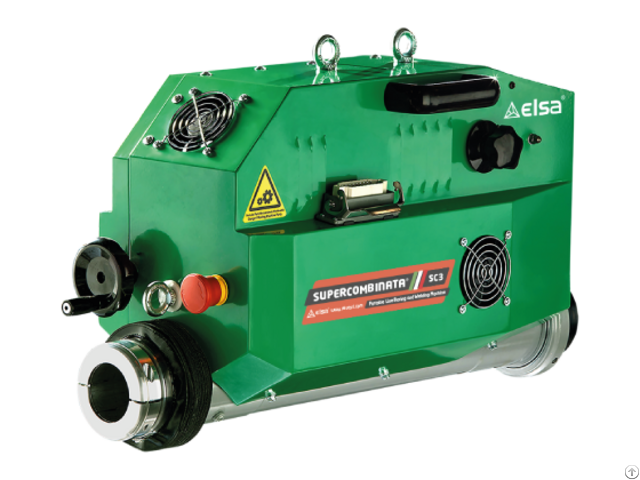

Elsa Supercombinata Sc3 - Italy

The Supercombinata SC3, thanks to its standard equipment, is suitable to perform internal line boring and internal and external overlay welding within a working range from Ø 62 mm to Ø 800 mm.

It’s suitable for drilling and tapping.

By means of extra kits, it is suitable to perform external line boring, facing of orthogonal planes, creation of circlips grooves, threading.

With additional accessories, the Supercombinata can be adapted to many different needs of our customers.

DIAMETERS Boring bar diameter: ø 60 x 2200 mm In line boring: ø 62 – 800 mm External line boring: Extra kit Internal welding: ø 42 – 800 mm External welding: ø 42 – 600 mm Drilling: Optional accessories Tapping: Optional accessories Threading: Extra kit Facing of orthogonal planes: Extra kit ROTATION MOTOR AC motor: Single phase Power at rated speed: 2300 W Output torque at the bar: 902 Nm with 55 rpm 1° speed: max 55 rpm (420 Nm) 2° speed: max 85 rpm (235 Nm) 3° speed: max 240 rpm (85 Nm) 4° speed: max 375 rpm (55 Nm) FEED MOTOR Gear motor: DC Power at rated speed: 90 W Max.

speed: 11 rpm Feed system: Electromechanical Feed: Manual/Automatic WELDING TECHNOLOGY Spiral: Continuous with variable step Welding machine: Compatible with MIG/MAG welder with EURO connector LONGITUDINAL STROKE Unlimited: With 350 mm pitch ELECTRONIC CONTROL PANEL Voltage: 220/240 V (50/60 Hz) Main switch: Available Emergency switch: Available Inverter feed: RH/LH Inverter rotation: CW/CCW Speed regulator: Rotation/Feed Electrical absorption: 2300 W Control panel 110/120 V: Upon request Digital control panel: Upon request DIMENSIONS Length: 680 mm Width: 300 mm Height: 390 mm Weight central unit: 39 kg STANDARD EQUIPMENT Qty 1 - Main unit Qty 1 - Boring machine stand Qty 1 - Electronic control panel Qty 1 - Control panel holder Qty 1 - Cable control panel/machine Qty 1 - Power cable 220 V Qty 1 - Boring bar ø 60x2200 mm Qty 1 - Boring bar extension 520 mm Qty 2 - Pivot Qty 1 - Tool holder for boring d.

120-250 mm Qty 1 - Tool holder for boring d.

250-800 mm Qty 1 - Tool holder LH ø 12x50 mm Qty 1 - Special tool holder LH ø 12x60 mm Qty 1 - Tool holder LH ø 12x60 mm Qty 1 - Tool holder LH ø 12x80 mm Qty 1 - Tool holder RH ø 12x100 mm Qty 1 - Box with 10 cutting inserts Qty 1 - Adjusting plug for tool holder Qty 2 - Main bar support Qty 2 - Additional support Qty 18 - Bracket for flanges 200 mm Qty 18 - Bracket for flanges 275 mm Qty 4 - Flanges support d.

250-800 mm Qty 1 - Telescopic shaft for welding Qty 1 - Reduction bushing drawing torch Qty 1 - Reduction bushing locking torch Qty 5 - Diffusor extension 35 mm Qty 4 - Diffusor extension 100 mm Qty 4 - Short gas nozzle Qty 4 - Long gas nozzle Qty 5 - Short contact tip ø 0, 8 mm wire Qty 5 - Long contact tip ø 0, 8 mm wire Qty 1 - O-ring for welding shaft 100x5 mm Qty 1 - Terminal lance for external welding Qty 1 - Centring system for through holes d.

250-800 mm Qty 1 - Centring system for through holes Qty 1 - Centring system for blind holes Qty 1 - Telescopic gauge up to ø 800 m Qty 1 - Dial gauge Qty 1 - Dial gauge support Qty 1 - Set of wrenches Qty 1 - Screws and bolts EXTRA KITS BORING REDUCTION KEP00594 Ø 22 - 44 mm (0, 87” - 1, 73”) KEP00593 Ø 32 - 70 mm (1, 26” - 2, 76”) KEP00688 Ø 42 - 160 mm (1, 65” - 6, 30”) KEP00687 for jobs with KES00186/KES00200 FACING KES00186* Ø 48 - 255 mm (1, 89” - 10, 04”) KES00200* Ø 56 - 400 mm (2, 20” - 15, 75”) KES00363 Ø 228 - 500 mm (8, 98” - 19, 68”) KES00364 Ø 376 - 800 mm (14, 80” - 31, 50”) *SC2 / SC3 compatible by using KEP00687 INTERNAL THREADING KFL00927 Ø 120 - 350 mm (4, 72” - 13, 78”) EXTERNAL BORING KEL00202 Ø 100 - 200 mm - D.

200 mm (3, 94” - 7, 87”) KEL00203 Ø 150 - 300 mm - D.

300 mm (5, 90” - 11, 81”) BIG DIAMETERS KED00366 Ø 800 - 1200 mm (31, 50” - 47, 24”)
