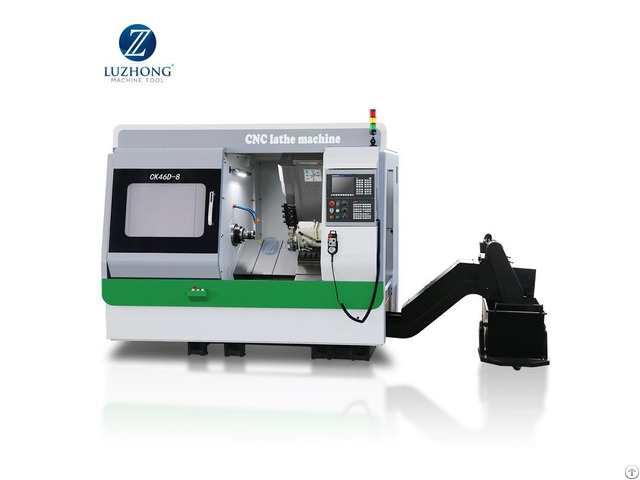

High Speed Precision Automatic Ck46d 8 Cnc Slant Bed Linear Rail Lathe Machine - China
price: 35800.00 Dollar US$
FEATURES：
C axis
Y axis SPECIFICATIONS Units CK46D-8
Swing over bed mm 450
Swing over cross slide mm 130
Distance between centers mm 450
Spindle bore mm 56
Spindle nose type - A2-5
Spindle speed steps - Stepless
Spindle speed range rpm 4500
Turret/tool post - Hydraulic turret
4+4 living tools
Tool size mm 25 x 25 /ER25
X axis travel mm 500
Z axis travel mm 450
Y axis travel mm 240
X axis rapid traverse mm/min 24000
Z axis rapid traverse mm/min 24000
Y axis rapid traverse mm/min 15000
living tools type - Nose 4+ Side 4
living tools power kw 1.3
living tools speed r/min 3000
Distance of each living tools mm 60
X/Y/Z Positioning accuracy mm 0.003mm
X/Y/Zrepositioning accuracy mm 0.006mm
Spindle (C Axis) dividing positioning accuracy ” 0.02”
Spindle (C Axis) dividing repositioning accuracy ” 0.006”
Main spindle (C Axis) motor kw C Axis 7.5
Guide rail type - Linear rail
Machine weight kg 3000
Overall dimension mm 2500x1750x1800
Company Contact:
- Posted By: Shandong Luzhong Machine Tool CO., LTD
- Phone: 86-0632-5083086
- Address: East of Luban Avenue,Tengzhou City,Zaozhuang City,Shandong Province,China, Tengzhou Shandong Province China, In the business, China
- Email:
Published date: April 27, 2021
- Business Description: -Machine center
-Lathe machine
-CNC lathe machine
-Milling machine
-Drilling machine
-Band sawing machine
-Boring machine
-Hydrulic press machine
-Metal forging machine(Air hammer,Slotting machine,Shapping and Gear hobbing machine)
-Sheet metal machine(Bending machine,Shearing machine,Rolling machine,Combined punching and shearing machine,Combination of Shear Brake Roll Machine)
Whatsapp/wechat: +86 15163203317
Email: crom@lu zhongmc.
com
