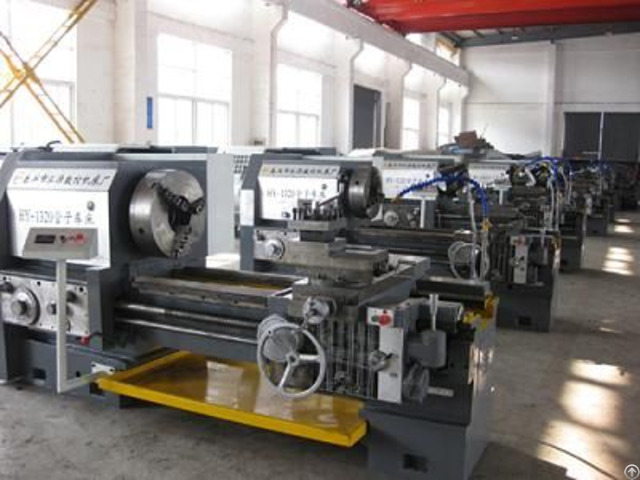

Hy 1320 Lathe Machine - China

This series pipe lathe machine is manual type, they are widely used in oil, chemical, geological prospecting industrial etc for kinds of pipe thread turning.

Especially suitable for tool joint rough machining and semi-finishing machining.

It also can be used as conventional lathe, which can cut excircle surface, inner hole, end face, circular arc, taper, step, chamfer, metric/inch thread etc: Items Unit HY-1320 Max.

swing diameter over bed mm φ680

Max.

swing diameter over saddle mm φ400

Max.

diameter of workpiece mm φ190

Max.

length of workpiece mm 1000

Manual chuck diameter mm φ500

Spindle speed range r/min 20～350

Spindle bore diameter mm φ200 Carriage quick moving speed m/min 3.8

Distance from tool base to spindle center mm 32

Tool section dimension mm 32×32

Tool rest turning angle ±90°

Spindle center height mm 1100

Max.

travel of horizontal tool rest mm 445

Max.

travel of small tool rest mm 200

Tailstock sleeve diameter mm 100

Tailstock sleeve stroke mm 250

Tailstock sleeve tape hole Mohs 5#

Tip taper Mohs 5#

Main motor model YPNC-33.3-11-B-B3

Main motor power kW 11

Roughness mm Ra1.6～Ra3.2

Machine weight ㎏ 5700

Machine dimension(L×W×H) mm 3700*2000*1600
