Desktop Automatic Pcb Soldering Robot For Electronics Manufacturer - China

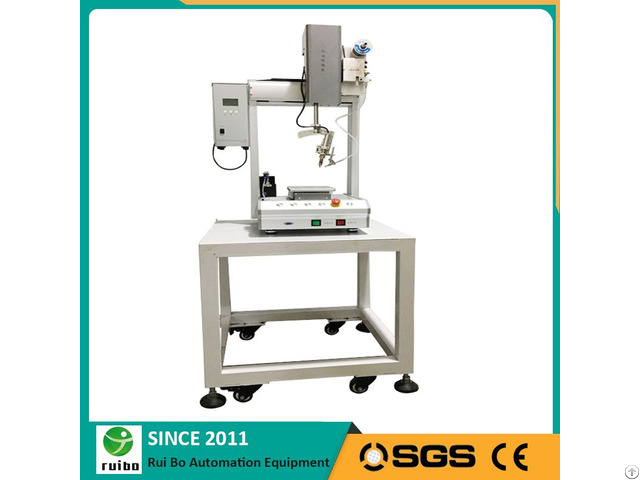

Desktop Automatic PCB Soldering Robot for Electronics Manufacturer

Automatic soldering machine is suitable for the industry micro-speakers/motors, SMT post-welding of various PCBs, automatic soldering of various parts of mobile phones, and so on.

Used to solder various electronic components, such as capacitors, LEDs, arrays, wires, switches, chargers, electronic-acoustic products, transformers, PCBs and other components.

Often used in consumer electronics, automotive electronics, medical electronics, LED lighting and other fields.

Product Description of Automatic welding robot

1 - Automatic welding robot is designed to adapt to the development of high-speed, efficient and intelligent automatic welding.

It uses a set of high-precision solder control system to support X/Y/Z /R Four-axis movement and high-speed USB storage.

In addition, the system provides users with more convenient editing instructions, more storage space, faster speed and more technical parameter setting, which greatly improves the production efficiency and quality.

2 - According to the welding requirements of customer products, we provide professional and special tip soldering, with the control system of high-precision welding table, make the heating curve of soldering iron more smooth, welding quality more stable.

Specifications of Soldering Robot

Voltage AC 220V 50HZ

Heating Power 150~300W

Work Platform Size 310*200*60

Weight About 45KG

Controller PLC of OMRON

Maximum Load Weight 8KG(For Work Platform)

Axis of Motor Four

Movement Speed(X, Y, Z) 0.1-800mm/Sec

Repeat Positioning Accuracy ±0.002mm (X * Y * Z)

Resolution 0.01mm (X * Y * Z)

Demo File Capacity Up to 99 files, up to 9999 points per file(can expand capacity infinitely)

External connector RS232

Preheating Temperature Range 0ºC~ 550ºC

Operate Temperature 0ºC~40ºC

Operate Humidity 20~90%

Solder Wire Diameter 0.5, 0.6, 0.8, 1.0, 1.2 (mm)

Working Stroke(X*Y*Z*R) ≤300mm*300mm*100mm*300

Tin feeding control Stepper motor

Tip temperature 450°

External Dimensions(L*W*H) 525*485*725(mm)

Features of Automatic Welding Soldering machine

1 - Automatic Soldering Machine with spot soldering, drag soldering, automatic cleaning, pass or other function.

2 - Soldering robot with position correction, copying, array and other.

And the machine operation is simple and quickly.

3 - Automatic tip cleaning function by airflow cleaning, the residual dross on the tip can be blown

4 - The operation program of soldering machine can be revised autonomously, with step insertion, deletion function, and administrator authority.

5 - Welding temperature, tin amount and time are adjustable

6 - The operating interface enables dynamic coordinates.

7 - Multi-parameter setting of the welding process to fully guarantee the welding quality.
