Pneumatic Hot Glue Dispensing Machine With Competitive Price For Mp3 Mp4 Etc - China

Pneumatic Hot Glue Dispensing Machine with Competitive Price for MP3, MP4, etc.

Automatic Glue Dispensing Machine also called glue dispenser, it is applied to most industrial production: mobile phone buttons, printing, switches, connectors, computers, digital products, digital cameras, MP3, MP4, electronic toys, speakers, buzzers, electronic components, integrated circuits, circuit boards, LCD screens, relays, speakers, crystal components, LED lights, chassis bonding, badges, logos, chips, signs, optical lenses, machine parts seals, etc.

Description of Glue Dispenser CB-320DJ Automatic Dispensing Machine uses XYZ platform (Two Working Stations with two-component or more than two which accord to customs reqirement).

It is made of imported parts fromJapan and combined with domestic high-quality accessories.

It has low cost, high efficiency and stable performance.

Specification for Automatic Glue Dispensing Machine

Working Area(mm) 300*200*60/480*220*60

Axis 4-Axis

Platform Two Working Station

Glue Feeding two-component or more(Accord to customs requirement)

Voltage AC 220V 50HZ

Mainframe Motion control card + PC

Motor Type Step motor drive motor(Can be choose)

Transmission way Synchronous belt, ball screw(Can be choose)

Drive Mode sliding rail

Running accuracy(mm) 0.01/Axis

Repeat accuracy(mm) ±0.005/Axis

Operation Teach pendant

Work condition Temperature 0-40°C / Humidity 20-90%

Features of Automatic Dispensing System

1 - Automatic Rotary Liquid Glue Dispensing Machine can be drawing point, line, surface, arc, circle, irregular curve continuous complement and triple pumping linkage.

2 - Be able to set size of gluing area, speed of gluing, dispensing time, stopping glue time.

Stable glue exudation without glue leaking and dripping.

3 - According to the production process, work platform can be installed with positioning PIN, glue guns, baseboard heating temperature controlling device.

4 - With overall correction, area correction, area array and other functions.

5 - Can be used in large rubber cylinders of 300cc or pressure tanks to save glue time.

Working principle of Glue Dispenser System

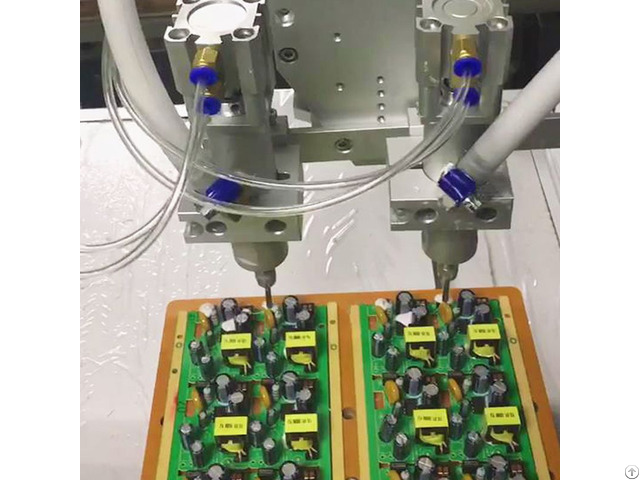

Double Platform glue dispensing machine has two working stations runing independently and circularly, work piece dispensing by XYZ movement under right time and pressure.

It has a suck back function.

To change the product, you only need to adjust the XYZ coordinates.

The operation is simple and easy to understand.

Fluids for Glue Dispenser Robot

Suitable for COB black plastic, red plastic, tin paste, UA glue, silica gel, epoxy resin, silver glue, AB glue, conductive glue, heat-dissipating aluminum paste, instant glue, etc.

Advantage of Automatic Dispensing Equipment

1) Simple operation.

Desktop automatic soldering machine.

Fully automated operation except pick and place products.

2) Flexible.

Feel free to move on the assembly line.

Do not need to be equipped with an external computer, can do single operation, easy installation.

3) High efficiency .

The efficiency is more than 1.5 times that of manual.

4)Precise control contest to ensure product quality

5) Big Program Record Groups Quantity: 100(Groups).

One product only needs one programming, the next production, direct call.

6) Low cost, High return.

The machine adopts double-head double-station, which can replace 2 people.

The purchase of one machine can save 2-3 people.
