Xwl 13 5h Meters Weeled Rotary Pile Drilling Rig - China

price: 100.00 Dollar US$

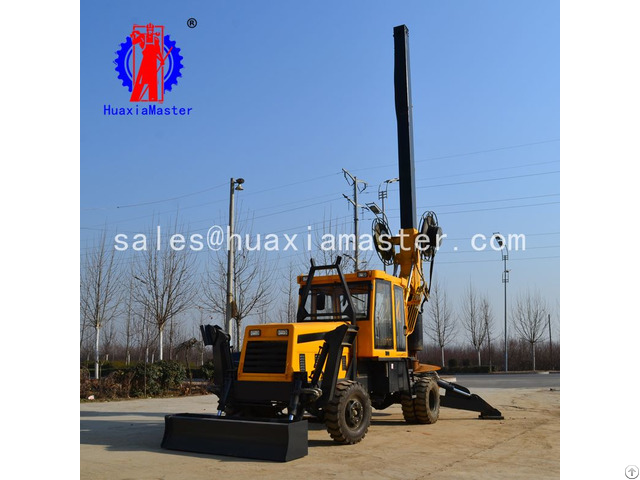

1.The brief introduction of 13.5 meters wheeled rotary pile drilling rig
13.5 meters wheeled rotary pile drilling rig is a kind of rotary pile drilling rig, which is suitable for building construction foundation. It is widely used in the construction of various soil layers, such as sand, clay, silty soil and so on. At the same time, it is widely used in the construction of cast-in-place piles, continuous walls, foundation reinforcement. The small rotary drilling rig has the characteristics of low noise, small vibration, large torque, muti-function, fast drilling speed, flexible in operation, high construction efficiency, various speed regulation, electronic automatic monitoring.These characteristics gradually replace some traditional piling and drilling equipment.
2.The technical parameters of 13.5 meters wheeled rotary pile drilling rig
Model XWL-13.5
Work pattern oil cylinder force wire rope deadweight
Drilling hole diameter mm 500-1500mm
Drilling depth m 13.5 10-26
External dimension m 7.7*2.2*3.0
Weight t 8
Tire type / 900-20 Engine model / 4108 power kw 88 rotating speed r/min 2400
Power head torque kn.m 17000-22000
Power head rotating speed r/min 30-50
Maximum lifting power kn 150
Maximum stroke m 11-22
Wire rope diameter mm 16
Rotation angle ° 180
Moving speed km/h 20-30
Maximum grade ability ° 25-30
