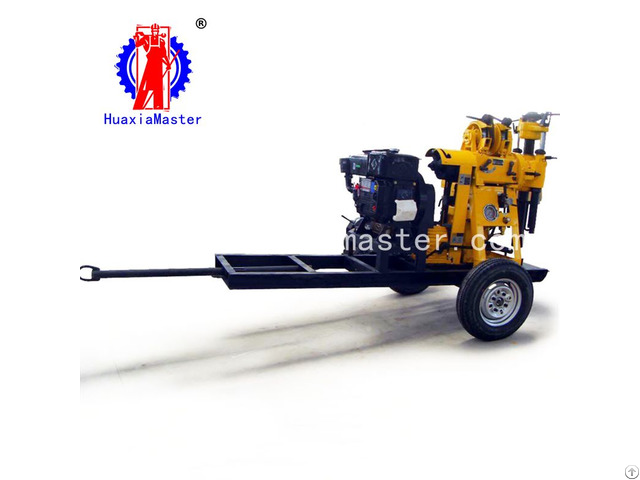

Xyx 130 Wheeled Hydraulic Core Drilling Rig - China

price: 150.00 Dollar US$

1. Applications of XYX-130 wheeled hydraulic core drilling rig
Geological survey and exploration, basic exploration for roads and high-rise buildings, inspection holes for various concrete structures, river embankments, subgrade grouting holes, direct grouting, civil water well and ground temperature central air conditioners.
2.Features of XYX-130 wheeled hydraulic core drilling rig
The drilling rig is equipped with wheeled walking mechanism, which is convenient for the whole machine to move.
Also, because of the oil pressure feeding mechanism, the rig improves drilling efficiency.
The drilling rig is equipped with a ball card holding mechanism instead of chuck, and it can be operated without stopping the rod. The working efficiency is high and the operation is convenient, safe and reliable.
The drilling rig is equipped with pressure gauge so the operatpr will know the bottom hole condition during drilling process.
3.Technical parameters of XYX-130 wheeled hydraulic core drilling rig
XYX-130 wheeled hydraulic core drilling rig
Drilling depth 130m
Max open hole caliber 220mm
End hole caliber 75mm
Drilling rod diameter 50mm
Drilling angle 90°-75°
Drill weight 950kg


Company Contact:


  • Phone: +8619806265526

  • Address: Wu taizha road, guanhe street, jining hi-tech zone, shandong province, Jining, Shandong, China

  • Email: Email


Published date: June 26, 2019 -

  • Business Description: Mechanical equipment and accessories, flood control equipment, track equipment, electric tools, hydraulic equipment, pneumatic tools, explosion-proof electrical appliances, instruments, pumps
