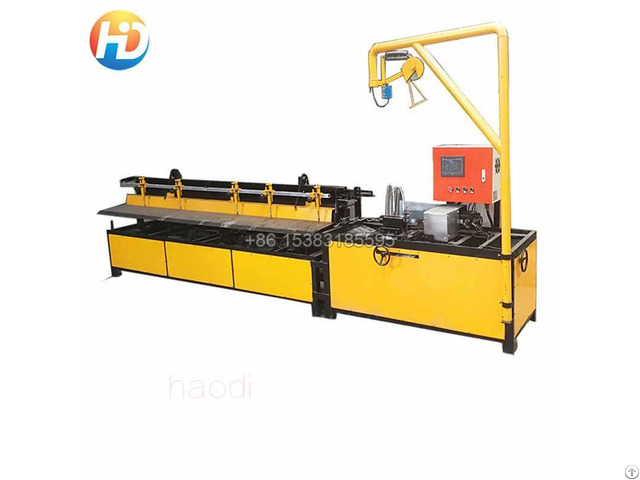

Plc Controlled Semi Automatic Chain Link Fence Machine - China

Main Features

1) PLC controlled semi automatic machine

2) servo-motor control Speed, and good performance

3) Single wire feeding (inlet)

4) Chain link fence width automatic change

Mesh Size: 25×25 mm – 125×125 mm

· Wire Diameter: 1.3mm – 4.2 mm (PVC Wire: 1.6mm – 5.8 mm)

· Designed for continuous working system as 24 hours.

· single-wire input.

· One mold technology

· Can be used with kind of galvanized or pvc wire.

Stainless steel wire, Annealed wire, aluminum cald steel wire.

Vinyl coated wire

· Controlled with the touch screen.

· Wire fencing speed can be set can set via touch screen.

· Improved system to avoid losing time for beginning fencing while changing mold.

· High Energy Saving through the patented operating system and software.

· Owing to special noise isolation, works with very low noise.

· Just one technical person is enough to wire fencing process.

If you want to inquire Chain Link Fence Machine price, please visit our website

semi automatic chain link fence machine

Machine Dimensions mm 5100 * 1000 * 1450 (3m wire mesh machine) Type HD-3000 Origin Hebei, China Power Kw 4 (2.5Kw, 1.5Kw) Weight Kgs 800

Wire mesh Mesh Width m 0.5-3(5) Wire Diameter mm 1.2-4.5 (PVC Wire: 1.6mm – 5.8 mm) Hole size mm 25-100(1" - 4")

Others wire materials Galvanized iron wire PVC WIRE, stainless steel wire capcity m2/hour 60-120 Rated Voltage V 220 380 420 440 etc Good performance of Semi Automatic Chain link fence machine:

1: production efficiency is about twice of same species

2: fault is the lowest in the same species

3: machine is easy and simple to handle.

the worker has the common mechanical knowledge can master it in one hour

4: the loss of the raw materials of the same species is 1%-5%, while the innovative this Chain link fence machine is nearly zero.

5: the Chain link fence machine can Save 20% of your electricity

6: it is suitable to all kinds of mild steel wires

7: the mesh size has a wide of wide adjustable range

8: the preferential price and first-class quality is the most ideally choice of the customers

chain link mesh machine supplier: AnPing HaoDi metal wire factory

Company Contact:

• Posted By: Anping Haodi Metal Wire Mesh Products Co., Ltd.

• Phone: 15383185595

• Address: hengshui , hengshui , hebei , China

• Email:

• Business Description: Established in 2007, AnPing HaoDi metal wire factory is a professional manufacturer and exporter that is concerned with the design, Development and production of Wire mesh machines and Wire mesh products.

  We are located in AnPing-the famous hometown of wire mesh in China.

  With convenient transportation access.

  All of our products comply with international quality standars and are greatly appreciated in a variety of different markets throughout the world.

  In 2013, AnPing county HaoDi metal wire mesh products Co., Ltd. company was founded.

  We provide Semi Automatic Chain Link Fence Machine,Fully-Automatic Chain Link Fence Machine, Single Wire Chain Link Fence Machine, Double Wire Chain Link Fence Machine and soon.
