Serration Gear Rolling Machine - Taiwan

price: check with company for price

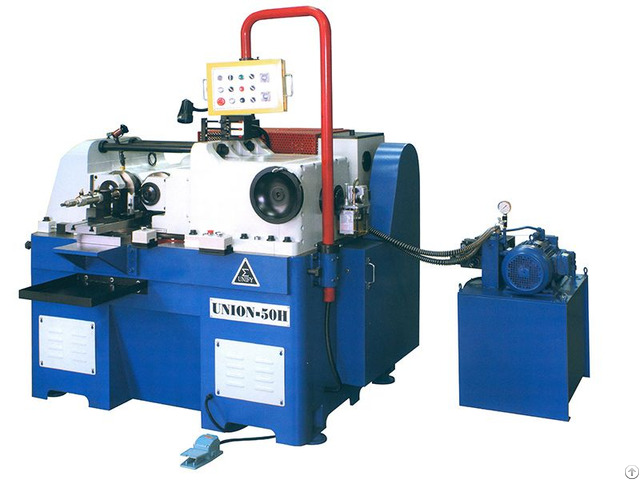

Serration Gear Rolling Machine

Products Photos Catalog Serration Gear Rolling Photos Catalog

Work piece diameter(mm) Ø6 ~ Ø50

Pitch(mm) 0.8P ~ 6.0P, M: 0.3 ~ M: 1.5

Length of thread rolling(mm) 98MAX

Spindle speed 15, 20, 30, 45, 60, 70 r.p.m

Thread rolling die(mm) Diameter Ø200MAX Bore Ø70 Length 35, 70, 100 Keyway 14 X 7

Distance of the rolling spindles(mm) 155 ~ 255

Output (pieces/min) 4 ~ 15

Main power motor 10 HP 6P (7.5 kw)

Hydraulic motor 5 HP (3.7 kw)

Max rolling pressure 40 TONS

Net weight 4050 kgs

Gross weight 4450 kgs

Overall dimension 1900 x 2300 x 2300 mm

Shipping measurement 1800 x 2300 x 2250 mm


Company Contact:


  • Phone: +886-4-25331131

  • Address: No. 118, Fengli Rd., Tantzu Dist., Taichung City, Taichung City, Taiwan

  • Email: Email

Published date: December 18, 2019

  • Business Description: KIM UNION was found in 1972 - For more than 40 years of working experience in the field, a vast experience of thread rolling machines and thread rolling dies, our products have proven to be precise, practical, durable, and excellent in design and solid in structure with excellent outlook.

    We arrange our production lines – thread rolling machine and thread rolling die into batch production, and has won unanimous adoption and honors from the customers for both local market and abroad.

    For more information please visit our website at www.

    kimunion.

    com
