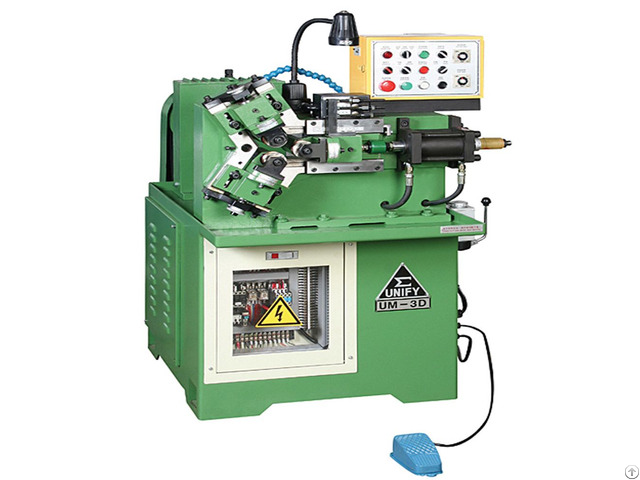

Three Die Pipe Type Thread Rolling Machine - Taiwan

Work piece diameter(mm) Ø18 ~ Ø60

Axial pitch for ISO threads(mm) 1.0P ~ 6.0P

Length of thread rolling(mm) Plunge rolling(In feed): 48 Thru feed rolling: no limited

Spindle speed 220, 350, 580, 720r.p.m

Thread rolling die(mm) Diameter Ø120 Bore Ø40 Length 25, 50 Keyway 8 X 4

Distance of the rolling spindles(mm) 105 ~ 190

Output (pieces/min) 4 ~ 25

Swivel of roll-axis ± 3°

Main power motor 5HP 6P(3.7kw)

Hydraulic motor 3 HP (2.2 kw)

Max rolling pressure 12 TONS

Net weight (Approx.

) 1300 kgs

Gross weight (Approx.

) 1450 kgs

Overall dimension (L x W x H) 1600 mm x 1500 mm x 1600 mm

Shipping measurement (L x W x H) 1450 mm x 1400 mm x 1700 mm UM-3DX 3-die thread rolling machine is specially designed for tubular processing.

Equilateral triangle supports running to assure the roundness.

with 3- die thread rolling machine is with equilateral triangle supports the thread rolling for improving roundness, concentricity and vertical degree.

UM-3DX thread rolling machine is driving by hydraulic unit: Featuring in easy operation and powerful pressure.

UM-3DX is set with 4 speeds transmission gear with grinding shape teeth: Featuring in noise-free, durable and precise transmission.

Particularly applied to the tubular thread processing, such as oil connectors, bicycle, automobile and motor vehicle parts, radiating pipe etc.
