Small Surface Grinding Machine Cf 612b - Taiwan

price: 1.00 Dollar US$

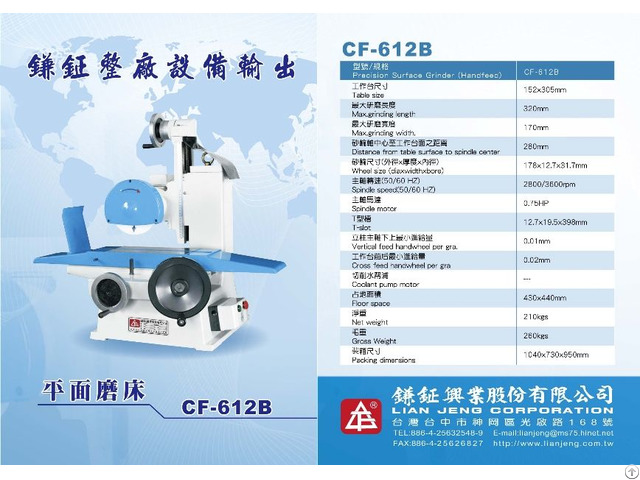

Small Surface Grinding Machine Cf 612b

Products Photos Catalog Surface Grinding Photos Catalog

Models (CF-612B)

Table

Table size 152×305mm

Max.

grinding length 320mm

max.

grinding width 170mm

Distace from table surface to spindle center 280mm

Wheel size(dea×width×bore) 178×12.7×31.7mm

Spindle speed(50/60Hz) 2800/3600rpm

Spindle motor 0.75HP

T-slot 12.7×19.5×398mm

Vertical feed handwheel per gra.

0.01mm

Cross feed handwheel per gra 0.02mm

Coolant pump motor --

Floor space 430×440mm

Net weight 210kgs

Gross Weight 260kgs

Packing dimensions 1040×730×950


Company Contact:


  • Phone: +886425625559

  • Address: No. 168, Guangqi Rd., Shengang Dist., Taichung City. , Taiwan

  • Email: Email

Published date: September 12, 2016

  • Business Description: LIAN-JENG CORPORATION was established in 1981.

    In the same year we launched the universal vertical and horizontal milling machines,

    whose quality and performance to provide guaranteed excellent machinery for customer's best choice.

    Nevertheless, to obtain better efficiency and consistent quality,

    we put great efforts into developing automatic hydraulic milling machine.
