Yc Changeable Metal Profile Roll Forming Machine - China

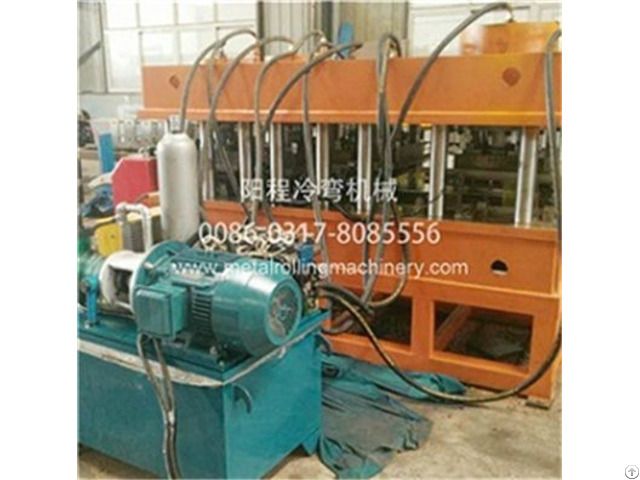

YC Changeable Metal Profile Roll Forming Machine

Changeable Steel Profile Machine

We also can design the Automatically Interchangeable Steel Forming Machine as per your required profile drawings

SURFACE TREATMENT Changeable Profile Roll Forming Machine

1) Processing material: steel sheet, galvanized sheet or colored armor plate

2) Material thickness: 1.5-2.0mm

3) Effective width: as per above profile drawing

4) Feeding width: as per above profile drawing

5) Main motor power: 15kw (cycloidal planetary gear speed reducer)

6) Diameter of shaft: Ф55mm

7) Roller stations: 12 forming steps with two sets of changeable roller units

8) Roller material: GCr15

9) Shaft material: 45#steel with high frequency surface treatment and grinding process

10) Automatic cutting system: 5.5kw.

Fly sawing, auto cut to any length you need

11) Cutter material: high speed steel

12) Driving method: gearbox

13) Productivity: 10-15m/min

14) Control system: Taiwan Delta PLC computer control with inveter

15) Power supply: AC380/50Hz(or as per your request)

Changeable Metal Profile Roll Forming Machine TECHNOLOGY

3T manual decoiler→leveling machine(optional)→guidi ng platform→main roll forming machine→automatic fly sawing system→2m output table, 15kw electric motor, 5.5kw electric motor for cutting, PLC control system, two sets of changeable roller units

SALES TERMS

1).

Machine Price: Please contact us, we will try to give you good discount for starting our cooperation

2).

Payment term: 30%TT should be paid as advance deposit, 70%TT before shipment

Or 100% LC at sight

3).

Package: naked with simple plastic film and loaded in one 20-feet container

4).

Delivery time: 50 working days after receipt of the deposit

5).

Guarantee: 12 months.

If any part of machine breaks, we will supply it for free.

6).

After sales service

This Interchangeable Steel Roll Forming Machine is maintained free of charge for 12 months.

When the machine is used in China, we will install and debug the machine for free; if it is used at abroad, we will send the professional technician to debug.

Buyers should take all the fees for technicians traveling abroad, and pay 100USD\day\person.
