Hengxiang S18 Mini Encoder Diameter 18mm Solid Shaft 2 5mm Used In Robot - China

price: 20.00 Dollar US$

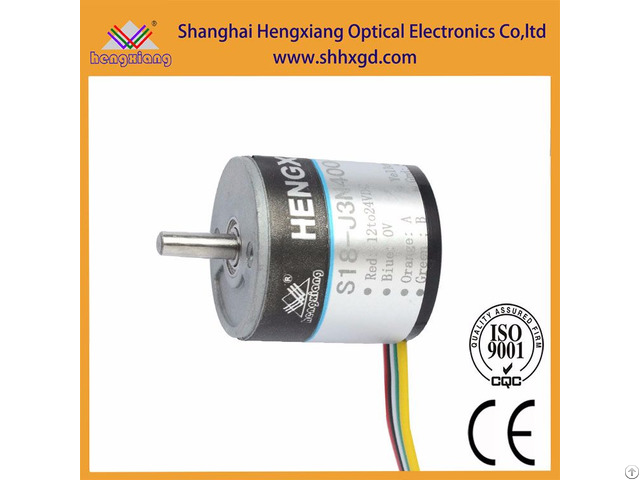

Hengxiang S18 Mini Encoder Diameter 18mm Solid Shaft 2 5mm Used In Robot

Products Photos Catalog Hengxiang S18 Mini Photos Catalog

S18- Series Encoder Specification

Items Basic parameters

External dimensions External diameter: 18mm

Thickness: 18mm

Shaft diameter: 2.5mm

Resolution 36;50;60;100;200;250;256; 360;400;500;1000;800;1600

Output phase Phase A, B, Z

Supply voltage DC5V & DC12-24V

Outlettype Cable out from side

Output mode Collector open circuit output(NPN &PNP)

Environmental temperature Operating temperature: -20~+80° (Non icing)

Storage temperature: -25~+85° (Non icing)

Environmental humanity Operating and storage: 35~85%RH (non-condensing)

Protection grade IP40

Cable length 150mm (cable length could be added appropriately by

require, but it need payment individually)

Shell Aluminium

package Carton box

Net weight About 20g (with package)

Certification CE


Company Contact:


  • Phone: 021-54613487-8019

  • Address: R301,Building7,Lane 115,No.1276 Nanle Road,SongJiang,Shanghai, songjiang , Shanghai , China

  • Email: Email


Published date: October 28, 2016

  • Business Description: Hengxiang encoder factory,

    Which can offer solid shaft, hollow shaft, incremental encoder, absolute encoder, quasi-sinusoidal encoder, etc.

    Revolution can up to 48000ppr.

    Max motor speed 24000rpm.
