Hengxiang Ultra Thin Servo Motor Encoder With Diameter 35mm Thickness 18mm Abzuvw Phase - China

price: 40.00 Dollar US$

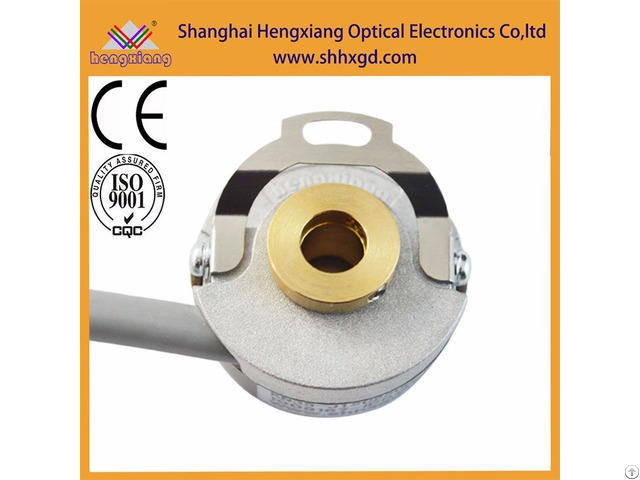

Hengxiang Ultra Thin Servo Motor Encoder With Diameter 35mm Thickness 18mm Abzuvw Phase

Products Photos Catalog Hengxiang Ultra Thin Photos Catalog

1) Advantages 1, Certification: CE& ISO9001 & SGS.

2, Feature: microminiature, logical compact configuration and easy to install.

3, Application: subminiature motor, small instrument, etc., for automation control KN35- Series Encoder Specification Brand: HENGXIANG

External Dimensions: External diameter: 35mm

Thickness: 18mm

Shaft diameter: 6mm/7mm/8mm

Resolution ： 1024;2048;2500;3600;5000; 7200;10000;14400

1000/6; 1000/8; 1024/6; 1024/8; 2048/6; 2048/8; 2500/6; 2500/8

Output Phase：Phase A, B, Z, U, V, W, Supply voltage：DC5V & DC8-30V

Outlet type：Cable out from side

Output Mode：Collector open circuit output(NPN &PNP)

Voltage output：Line Driver (26LS31)；Line Driver ( 26C31)；Line Driver(IC-HD7)

Environmental temperature Operating temperature: -20~+100° (Non icing)

Storage temperature: -25~+110° (Non icing)

Environmental humanity Operating and storage: 35~90%RH (non-condensing) Protection grade：IP40

Cable length：500mm (cable length could be added ) Shell： Aluminium

Package：Carton box

Net weight：About 80g (with package)

Certification： CE


Company Contact:


  • Phone: 021-54613487-8019

  • Address: R301,Building7,Lane 115,No.1276 Nanle Road,SongJiang,Shanghai, songjiang , Shanghai , China

  • Email: Email


Published date: May 21, 2017

  • Business Description: Hengxiang encoder factory,

    Which can offer solid shaft, hollow shaft, incremental encoder, absolute encoder, quasi-sinusoidal encoder, etc.

    Revolution can up to 48000ppr.

    Max motor speed 24000rpm.
