Yd2512 Rd Uv Flatbed Printer For Banner Advertisement Printing Machine - China

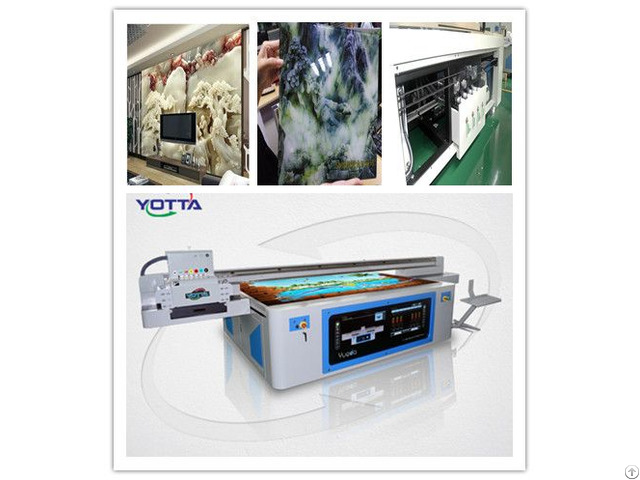

YD2512-RD UV Flatbed Inkjet Printer adopts imported original Ricoh G5 printhead, the number of printhead can be increased or decrease according to you requirement.

With the maximum print size of 2500mmx1250mm and print speed of 36㎡/h (4 PASS), it can print onto super huge flat materials which thickness within 100mm.

It is a high-speed and high - precision UV flat printer for medium and small size processing enterprises.

and meet their high precision and high speed production requirements.

Applications of YD2512-RD UV flatbed printer

Rigid materials: glass, ceramic, metal plate, wood, data plate.

acrylic panel, KT board, PVC sheet, melamine sheet, marble board, etc.

Flexible materials: paper, plastic film, leather, texitle, etc.

YD2512-RD printer specification

Model YD2512-RD

Printing size 2500mm×1250mm

Print head model Ricoh G5(7pl)

UVcuring systerm Standard|;086 mercury lamp for curing, 3-4 energy levels for option Optional: UV LED curing systerm

Printing color C, M, Y, K, Lc, Lm, W, V for option

Medium thickness Max100mm

Number of print head 3-8 pcs

Printing ink type Imported UV curable ink

Printing speed

High speed mode 36㎡/h

Normal working mode 27㎡/h

High precision mode 20㎡/h

Power supply Single phaseAC220V/6500W；50/60 HZ

Date interface High speed USB

RIPsoftware photoprint

Color control ICC

Weight 1300KG

Operation environment Temperature: 20℃-28℃, indoor relative humidity: 40%-60%

Dimension 4510×2500×1400(mm)

1 - About the price and quality?

We can not say we are the best supplier, but we are honesty for our quality and price.

Good quality is our first rule, and good service is our mission.

We produce machines as 5S management rules, and ISO standard.

2 - Why do you choose our factory?

We produce flatbed printing machine, digital flatbed printer is a new product in printing industry, it can

print on the surface for various kinds of flat objects directly, such as crystal, leather, glass, metal, ceramic

tile, PVC, PP, PE and so on.

Any pictures can be printed on the surface of the subjects by the printer with

high resolution, it is the fastest flatbed printer on the current market.

And we will keep you with a best

service, give us a chance, also give your a chance to know this field if you really want to know this printer.

3 - What is the printer operation?

a.

Through a digital camera or scanner to get File sources of pictures.

b.

Through the computer images to typesetting modified document layout.

c.

Through the universal printer output files to print.

d.

Print objects requirements.
