Cxwt Industrial Screen Loom - China

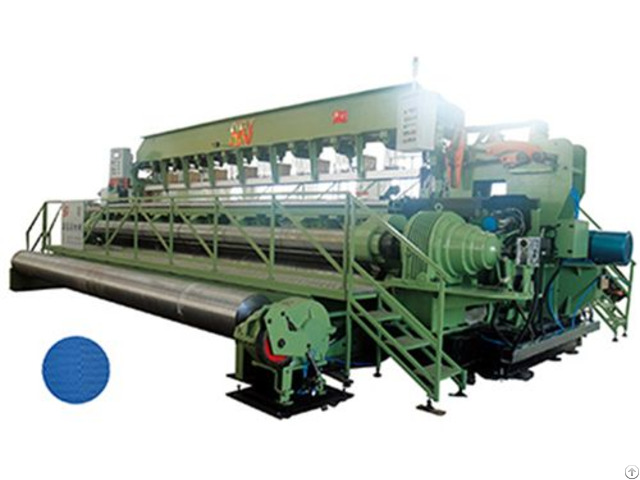

CXWT Industrial Screen Loom

easy to operate Integral Core Loom

Woven Brake Lining Loom

1, Range of Polyester monofilament: 0.2～1.2mm

2, Weft Density: 40～150 picks/10cm

3, Reed Width: 6300mm-7500mm.

4, Economic Loom Speed: 40-45rpm.

5, Power r: About 50Kw.

6, Weight: Approx.

40～60T.

1, Framework: The main wallboard adopts iron box structure; The Woven Brake Lining Loom installed on the overall base.

2, Main driven: Adopting bilateral motor two-sided coaxial drive.

3, Shedding Mechanism: Adopting bilateral broad knife blade side-drawing dobby device, 10 heald frames.

4, Weft Insertion mechanism: Servo motor drive, rapier weft insertion.

2 weft selection.

5, Beating Up Mechanism: Adopting multi-fissions crank four-linkage weft beating.

Crankshaft has variable speed device drive.

6, Take Up Mechanism: Adopting servo motor control three-roller positive take-up.

7, Let-off Mechanism: Adopting servo motor control positive let-off.

8, Web-rolling Mechanism: Independent external central fabric rolling system.

9, Lubrication system: Automatic grease lubrication and manual lubrication.

10, Controlling System: With PLC computer control system, the complete machine can freely set up various parameters and automatically display faults.
