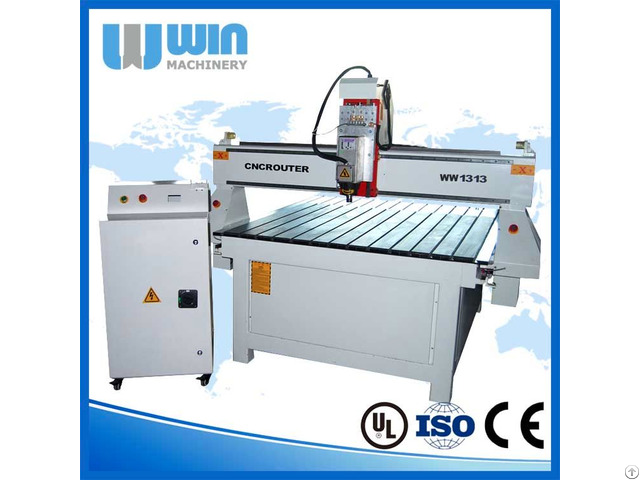

Ww1313 Cnc Engraving Machine - China

Product Description

Entry-level three axis made from fully stress-relived structured steel for cutting and carving flat board.

The Routers features - Precision ball scree drives - Rack and pinion transmission - Multi-zone vacuum plenum - World renown HIWIN bearings - Windows® based easy-to-learn and use G-Code Interface (multiple languages).

Advantages

1) The machine’s body is strong, high-precision, reliable and durable.

2) Imported high-precision ball screw, which moving smoothly, to ensure the machine’s high precision.

3).

Well-known brands of HSD Air-cooled brushless spindle, strong cutting ability, low noise, to ensure the machine working for long time.

4) High-performance driven motor to ensure the machine’s high speed and accuracy.

5) Perfect design, top quality accessories, to minimize the machine’s failure rate.

6) Breakpoint specific memory to keep the carving status when power off, processing time forecast and other functions in case of the accidental power outages.

Application

3D Carving, Acrylic Fabrication, Aluminum Fabrication, Architectural Millwork, Cabinetry, Exhibits and Fixtures, Signmaking, Arts and Crafts, Furniture, Boat Building, Musical Instruments and More.

Specification

1 X, Y, Z Working Area 1300x1300x200mm

2 Table Size 1360×3740mm

3 X, Y, Z Traveling Positioning Accuracy ±0.03/300mm

4 X, Y, Z Repositioning Accuracy ±0.03mm

5 Table Surface Vacuum and T-slot Combined (Option: T-slot Table)

6 Frame Welded Structure

7 X, Y Structure Rack and Pinion Drive, Hiwin Rail Linear Bearings

8 Z Structure Hiwin Rail Linear Bearings and Ball Screw

9 Max.

Power Consumption (Without Spindle) 3.2Kw

10 Max.

Rapid Travel Rate 33000mm/min

11 Max.

Working Speed 25000mm/min

12 Spindle Power 3.0/4.5/6/7KW

13 Spindle Speed 0-18000RPM

14 Drive Motors Stepper System

15 Working Voltage AC380V/50/60Hz, 3PH (Option: 220V)

16 Command Language G Code

17 Operating System DSP System (Options: Ncstudio/Mach3 PC Software)

18 Computer Interface USB

19 Flash Memory 128M(U Disk)

20 Collet ER25

21 X, Y Resolution <0.01mm

22 Software Compatibility Type3/UcancameV9 Software (Option: Artcam software)

23 Running Environment Temperature 0 - 45 Centigrade

24 Relative Humidity 30% - 75%

25 Packing Size 1900X1900X1970mm

26 N.W. 900KG

27 G.W. 1060KG

28 Optional

Parts Air Cooling Spindle or Water Cooling Spindle

Syntec Control System

Dust Collector/ Dust Hoods for three Axis

Vacuum Pump

Rotary System

Mist-cooling System

850W Yaskawa/800W Panasonic Servo Motors

Material

Acrylic, ACM, Copper, Brass, Aluminum, PVC, MDF, Melamine plastic, Foam, Melamine, Phenoic, Plywood, HDPE, Solid Surface, Solid Wood, etc.

Guarantee & After Sales Service

1 - The Cnc Engraving Machine is guaranteed for 12 months.

2 - Technical support by phone, e-mail or MSN around the clock.

3 - Friendly English version manual and operation video CD disk.
