Ww1325w Wood Carving Machine - China

price: 6800.00 Dollar US$

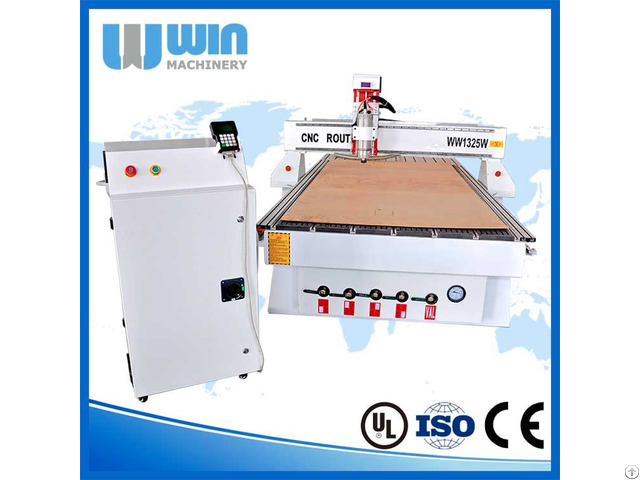

Ww1325w Wood Carving Machine

Products Photos Catalog Ww1325w Wood Carving Photos Catalog

Product Description

Entry-level three axis made from fully stress-relived structured steel for cutting and carving flat board.

The Routers features - Precision ball scree drives - Rack and pinion transmission - Multi-zone vacuum plenum - World renown HIWIN bearings - Windows® based easy-to-learn and use G-Code Interface (multiple languages).

Features

1 X, Y, Z Traveling Positioning Accuracy ±0.03/300mm

2 X, Y, Z Repositioning Accuracy ±0.03mm

3 Table Surface T-slot (Option: Vacuum and T-slot Combined )

4 Frame Welded Structure

5 X, Y Structure Rack and Pinion Drive, Hiwin Rail Linear Bearings

6 Z Structure Hiwin Rail Linear Bearings and Ball Screw

7 Max.

Power Consumption (Without Spindle) 4.5Kw

8 Max.

Rapid Travel Rate 33000mm/min

9 Max.

Working Speed 25000mm/min

10 Spindle Power 3.0/4.5/6/7KW

11 Spindle Speed 0-18000RPM

12 Drive Motors Stepper System

13 Working Voltage AC380V/50/60Hz, 3PH (Option: 220V)

14 Command Language G Code

15 Operating System DSP System (Options: Ncstudio/Mach3 PC Software)

16 Computer Interface USB

17 Flash Memory 128M(U Disk)

18 Collet ER25

19 Software Compatibility Type3/UcancameV9 Software (Option: Artcam software)

Application

3D Carving, Acrylic Fabrication, Aluminum Fabrication, Architectural Millwork, Cabinetry, Exhibits and Fixtures, Signmaking, Arts and Crafts, Furniture, Boat Building, Musical Instruments and More.

Material

Acrylic, ACM, Copper, Brass, Aluminum, PVC, MDF, Melamine plastic, Foam, Melamine, Phenoic, Plywood, HDPE, Solid Surface, Solid Wood, etc.

Guarantee & After Sales Service

1 - The CNC Wood Carving Machine is guaranteed for 12 months.

2 - Technical support by phone, e-mail or MSN around the clock.

3 - Friendly English version manual and operation video CD disk.

Contact Us

Miss Shining Guan

Email: shining @ 2winmachinery.

com

Skype: shining.

guan

WhatsApp: +86 13173016001

Mob: +86 13173016001


Company Contact:


  • Phone: 8653185802660

  • Address: No. 170, Jiluo Lu, Tianqiao District，Jinan, Jinan , Shandong , China

  • Email: Email


Published date: July 1, 2016

  • Business Description: A professional manufacturer of CNC Routers, Laser Cutting Machines, Plasma Cutting Machines in China.
